Drill chuck adapter DIN 69871 SK40, taper B12

Product information "Drill chuck adapter DIN 69871 SK40, taper B12"

Drill chuck adapter DIN 69871

- SK 40
- taper B12

Size: SK 40
Tool holders: DIN 69871
Type: Drill chuck adaptors

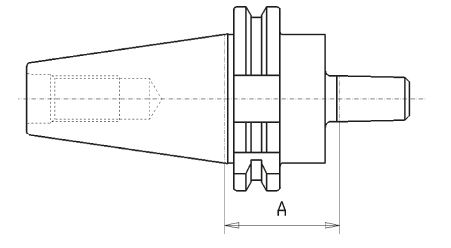

Technical Data

Größe /
Size
Kegel /
Taper
A
mm
SK 40 B12 25
SK 40 B16 25
SK 40 B18 35
SK 50 B16 25
SK 50 B18 25

Gewuchtet G = 6,3 15.000 U/min. /
Balanced G = 6,3 15.000 U/min.

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved

Product Safety Information:

  • Suitable only for technically skilled users familiar with the product and for craftsmen.
  • Intended solely for the designated purpose.
  • Improper use may lead to damage and injuries.
