End mill adapter WELDON MAS BT40, D1:20 / A:100
Product number:
13-7624-40-20-100
Customs tariff number
8466 1038
European Article Number
4049794019283
Weight
2 kg
Stock:
0
Related links:
Request Item
Product information "End mill adapter WELDON MAS BT40, D1:20 / A:100"

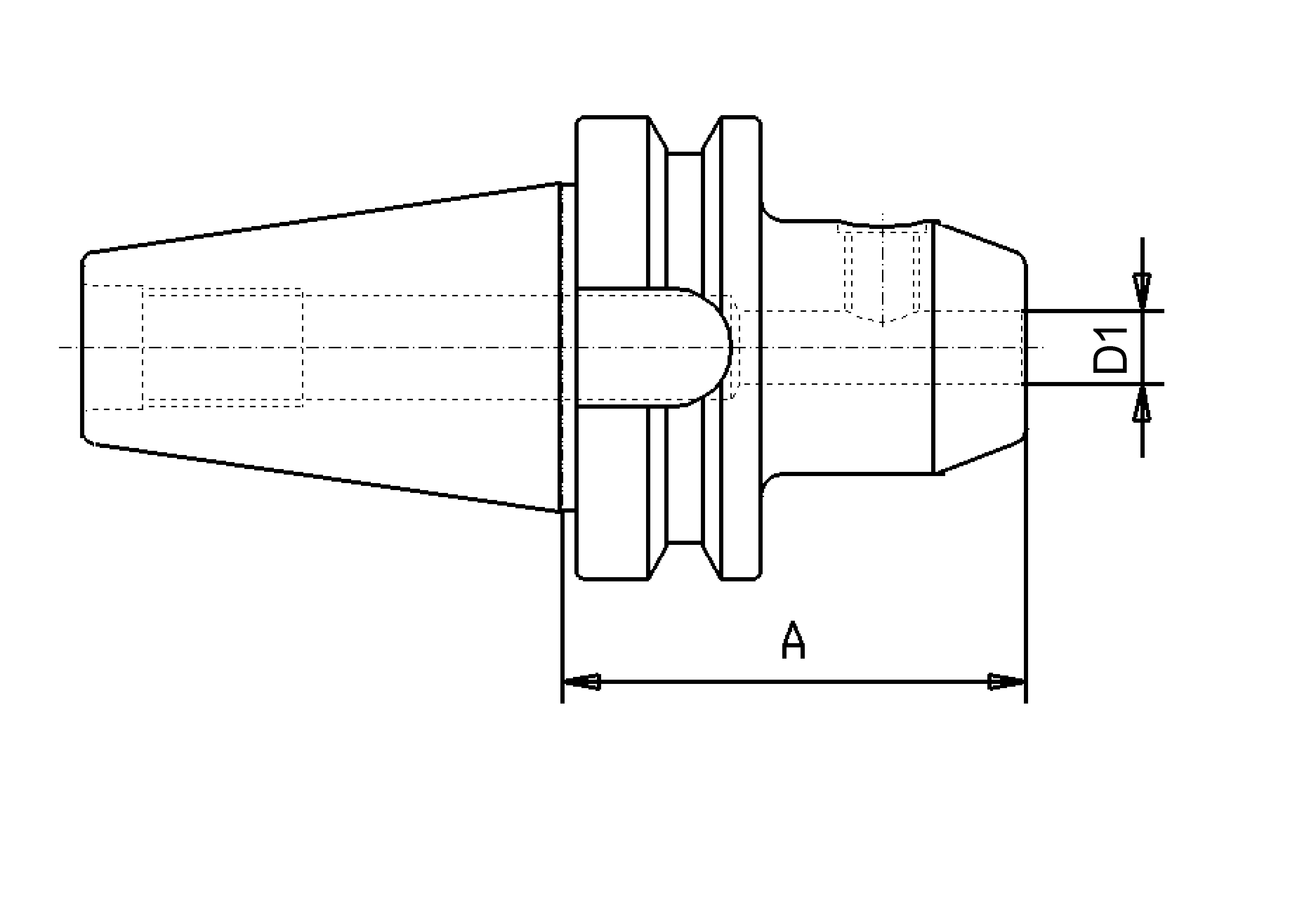

End mill adapter WELDON MAS BT40
- BT 40
- D1: 20 mm
- A: 100 mm
| Size: | BT 40 |
|---|---|
| Tool holders: | MAS BT |
| Type: | End mill adaptors Weldon |
| Ø : | 20 mm |
Technical Data
| Größe / Size |
D1 / mm |
A mm |
| BT 40 | 6 | 50 |
| BT 40 | 6 | 100 |
| BT 40 | 8 | 50 |
| BT 40 | 8 | 100 |
| BT 40 | 10 | 63 |
| BT 40 | 10 | 100 |
| BT 40 | 12 | 63 |
| BT 40 | 12 | 100 |
| BT 40 | 14 | 63 |
| BT 40 | 16 | 63 |
| BT 40 | 16 | 100 |
| BT 40 | 18 | 63 |
| BT 40 | 20 | 63 |
| BT 40 | 20 | 100 |
| BT 40 | 25 | 90 |
| BT 40 | 32 | 100 |
| BT 40 | 40 | 120 |
| Gewuchtet G = 6,3 15.000 U/min. | ||
| Balanced G = 6,3 15.000 U/min. | ||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||
