Face mill holder DIN 69871 SK40, D:27 / A:160
€59.04*
€70.26 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
13-7369-40-27-160
Customs tariff number
8466 1038
European Article Number
4049794033098
Weight
3,3 kg
Stock:
5
Related links:
Request Item

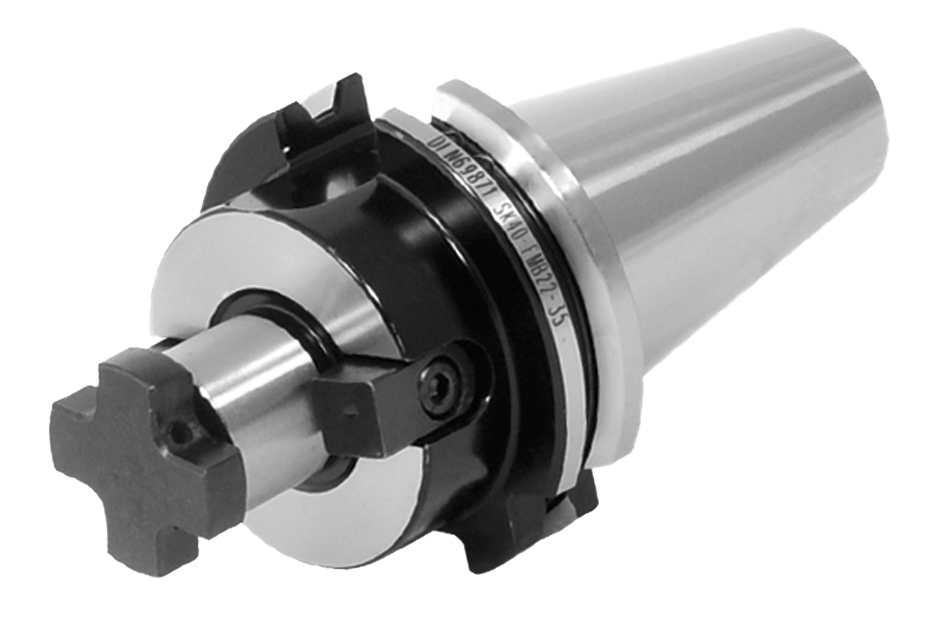

Product information "Face mill holder DIN 69871 SK40, D:27 / A:160"
Face mill holder DIN 69871 SK40
- SK 40
- D: 27 mm
- A: 160 mm
| Size: | SK 40 |
|---|---|
| Tool holders: | DIN 69871 |
| Type: | Face mill holders |
| Ø : | 27 mm |

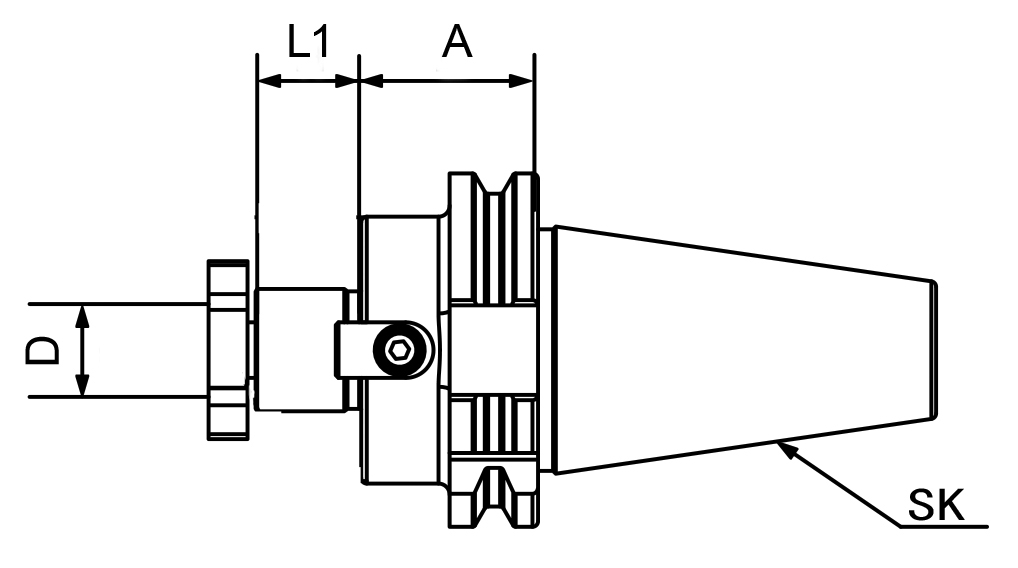

Technical Data
| Größe / Size |
D mm |
A mm |
L1 mm |
| SK 40 | 16 | 35 | 17 |
| SK 40 | 16 | 100 | 17 |
| SK 40 | 22 | 35 | 19 |
| SK 40 | 22 | 100 | 19 |
| SK 40 | 22 | 160 | 19 |
| SK 40 | 27 | 40 | 21 |
| SK 40 | 27 | 100 | 21 |
| SK 40 | 27 | 160 | 21 |
| SK 40 | 32 | 50 | 24 |
| SK 40 | 32 | 100 | 24 |
| SK 40 | 32 | 160 | 24 |
| SK 40 | 40 | 50 | 27 |
| SK 40 | 40 | 100 | 27 |
| SK 40 | 40 | 160 | 27 |
| Gewuchtet G = 6,3 15.000 U/min. / | |||
| Balanced G = 6,3 15.000 U/min. | |||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
