Face mill holder MAS BT50, D:22 mm / A:40 mm

Product information "Face mill holder MAS BT50, D:22 mm / A:40 mm"

Face mill holder MAS BT50

- BT 50
- D: 22 mm
- A: 40 mm

Size: BT 50
Tool holders: MAS BT
Type: Face mill holders
Ø : 22 mm

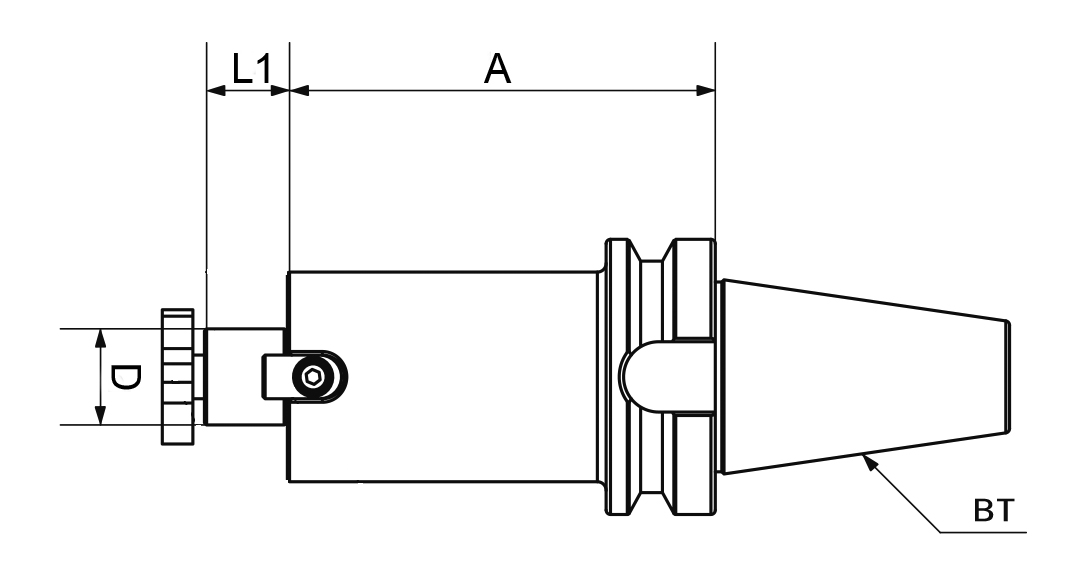

Technical Data

Größe /
Size
D
mm
A
mm
L1
mm
BT 50 22 40 19
BT 50 22 100 19
BT 50 27 40 21
BT 50 27 100 21
BT 50 32 50 24
BT 50 32 100 24
BT 50 40 50 27
BT 50 40 100 24
BT 50 50 78 30

Gewuchtet G = 6,3 15.000 U/min.
Balanced G = 6,3 15.000 U/min.

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
