Face mill holder MAS BT50, D:50 mm / A:78 mm
€129.38*
€153.96 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
13-7388-50-50
Customs tariff number
8466 1038
European Article Number
4049794033616
Weight
6,5 kg
Stock:
2
Related links:
Request Item
Product information "Face mill holder MAS BT50, D:50 mm / A:78 mm"
Face mill holder MAS BT50
- BT 50
- D: 50 mm
- A: 78 mm
- unbalanced
Size: | BT 50 |
---|---|
Tool holders: | MAS BT |
Type: | Face mill holders |
Ø : | 50 mm |

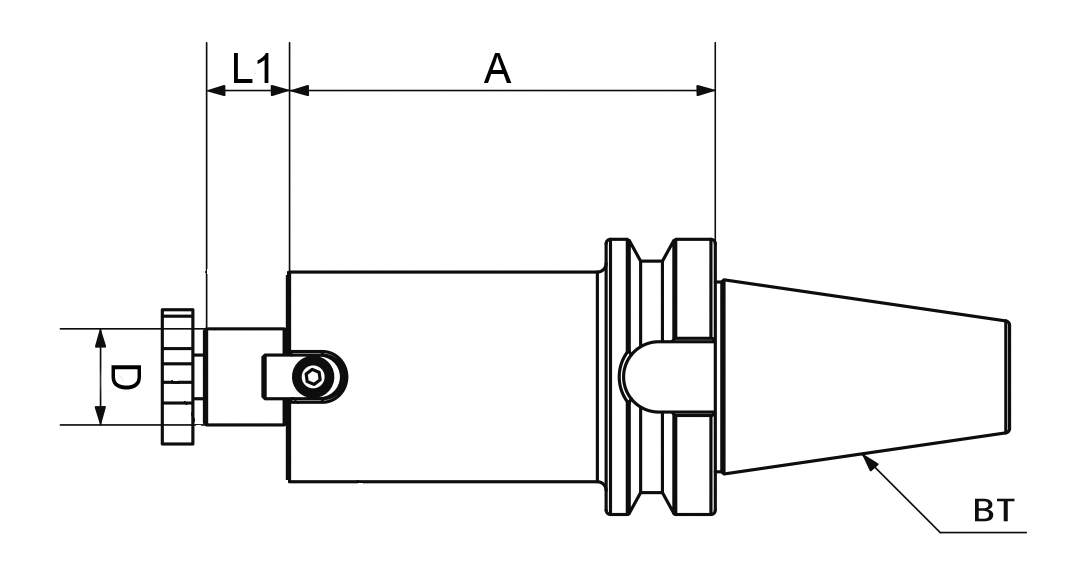

Technical Data
Größe / Size |
D mm |
A mm |
L1 mm |
BT 50 | 22 | 40 | 19 |
BT 50 | 22 | 100 | 19 |
BT 50 | 27 | 40 | 21 |
BT 50 | 27 | 100 | 21 |
BT 50 | 32 | 50 | 24 |
BT 50 | 32 | 100 | 24 |
BT 50 | 40 | 50 | 27 |
BT 50 | 40 | 100 | 24 |
BT 50 | 50 | 78 | 30 |
Gewuchtet G = 6,3 15.000 U/min. | |||
Balanced G = 6,3 15.000 U/min. | |||
Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
