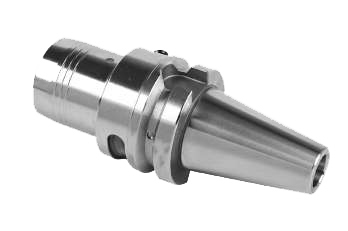

Hydraulic chuck BT 50, Ø 32 x 120 mm
€269.14*
Available, delivery time: 1-3 workdays
Product information "Hydraulic chuck BT 50, Ø 32 x 120 mm"
Hydraulic chuck BT50
- MAS BT AD
- balanced G = 2,5 20.000 U/min.
- BT 50
- d: 32 mm
- L: 120 mm
- incl. wrench
| Size: | BT 50 |
|---|---|
| Tool holders: | MAS BT |
| Type: | Hydraulic chucks |
| Ø : | 32 mm |

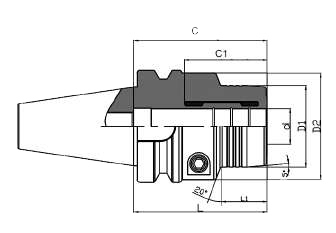

Technical Data
| Größe / Size |
D mm |
D1 mm |
D2 mm |
L mm |
L1 mm |
C1 mm |
C mm |
| BT 40 | 12 | 38 | 54 | 75 | 26 | 38 | 57 |
| BT 40 | 16 | 42 | 58 | 75 | 26 | 46 | 75 |
| BT 40 | 20 | 46 | 60 | 75 | 26 | 46 | 75 |
| BT 50 | 20 | 46 | 60 | 105 | 46 | 46 | 75 |
| BT 50 | 32 | 62 | 72 | 120 | 43 | 60 | 90 |
| Gewuchtet G = 2,5 20.000 U/min. / Balanced G = 2,5 20.000 U/min. |
|||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.

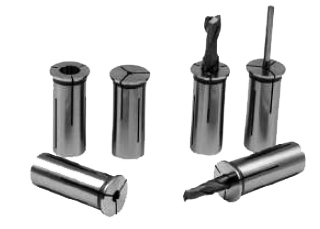

Accessories
