Shrink chuck SK 40 Ø 8 x 120 mm, DIN 69871
€88.34*
€105.12 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
13-SHFSK40-8-120
Customs tariff number
8466 1038
European Article Number
4049794668269
Weight
1,2 kg
Stock:
3
Related links:
Request Item
Product information "Shrink chuck SK 40 Ø 8 x 120 mm, DIN 69871"
Shrink chuck DIN 69871, SK40
- DIN 69871 AD/B
- balanced G = 2,5 25.000 U/min.
- SK 40
- D2: 8 mm
- A: 120 mm
| Size: | SK 40 |
|---|---|
| Tool holders: | DIN 69871 |
| Type: | Shrink chucks |
| Ø : | 8 mm |

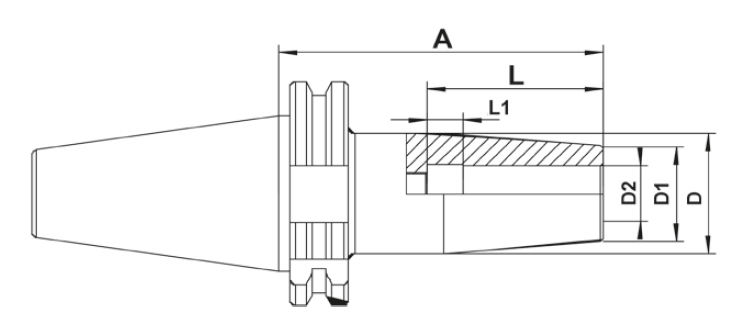

Technical Data
| Größe / Size |
D2 mm |
D1 mm |
D mm |
L mm |
L1 mm |
A mm |
| SK 40 | 3 | 10 | 20 | 15 | - | 80 |
| SK 40 | 3 | 10 | 20 | 15 | - | 120 |
| SK 40 | 4 | 15 | 22 | 15 | - | 80 |
| SK 40 | 4 | 15 | 22 | 15 | - | 120 |
| SK 40 | 5 | 15 | 22 | 20 | - | 80 |
| SK 40 | 5 | 15 | 22 | 20 | - | 120 |
| SK 40 | 6 | 20 | 27 | 36 | 10 | 80 |
| SK 40 | 6 | 20 | 27 | 36 | 10 | 120 |
| SK 40 | 8 | 20 | 27 | 36 | 10 | 80 |
| SK 40 | 8 | 20 | 27 | 36 | 10 | 120 |
| SK 40 | 10 | 24 | 31 | 41 | 10 | 80 |
| SK 40 | 10 | 24 | 31 | 41 | 10 | 120 |
| SK 40 | 12 | 24 | 31 | 47 | 10 | 80 |
| SK 40 | 12 | 24 | 31 | 47 | 10 | 120 |
| Gewuchtet G = 2,5 25.000 U/min. / Balanced G = 2,5 25.000 U/min. |
||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
