Safety hood, slidable, for chuck-Ø 800-900 mm
€1,649.23*
€1,962.58 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
ZE-FS20-800
Customs tariff number
8466 3000
European Article Number
4049794657263
Weight
28,8 kg
Stock:
1
Related links:
Request Item
Product information "Safety hood, slidable, for chuck-Ø 800-900 mm"

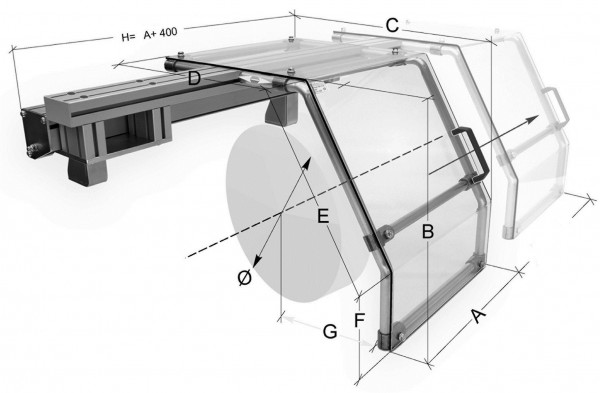

Safety hood for chuck-Ø 800-900 mm
- sliding steel-framed shield made from acrylic glass
and auto- carrying guide
- with safety micro-switch
- protection against chips, lubricant and coolant
- easy adaption to the back of the spindle
- various adjustments
Diameter C of the safety hood should be
150 - 200 mm larger than the lathe chuck.

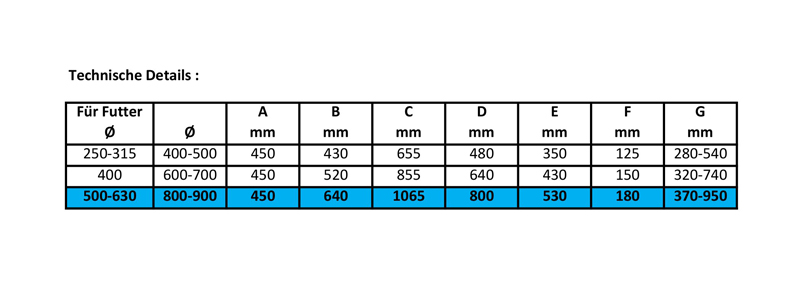

Technical Data
| Für Futter-Ø / For chuck-Ø | A mm | B mm | C mm | D mm | E mm | F mm | G mm |
| 400 – 500 | 450 | 430 | 655 | 480 | 350 | 125 | 280 – 540 |
| 600 – 700 | 450 | 520 | 855 | 640 | 430 | 150 | 320 – 740 |
| 800 – 900 | 450 | 640 | 1065 | 800 | 530 | 180 | 370 – 950 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved | |||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
