Drill and reamer extension, 2/2-350
€32.83*
€39.07 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
01-75-2/2-350
Customs tariff number
8466 1020
European Article Number
4260073570480
Weight
1 kg
Stock:
4
Related links:
Request Item
Product information "Drill and reamer extension, 2/2-350"
Drill and reamer extension 2/2-350
- external taper 2, internal taper 2
- completely ground, taper hardened
- length 350 mm
| External taper: | 2 |
|---|---|
| Internal taper: | 2 |
| Length: | 350 mm |
| Type: | Drill and reamer extensions |

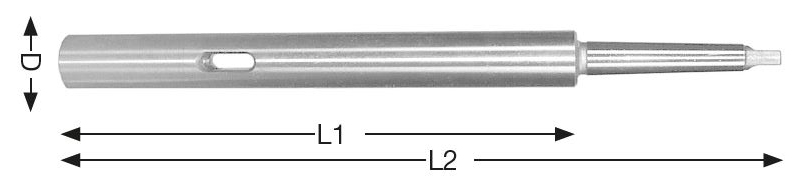

Technical Data
| Außenkegel / External taper |
Innenkegel / Internal taper |
D mm |
L1 mm |
L2 mm |
ca. g |
| 1 | 1 | 20 | 138 | 200 | 250 |
| 1 | 1 | 20 | 188 | 250 | 375 |
| 1 | 1 | 20 | 238 | 300 | 500 |
| 1 | 1 | 20 | 288 | 350 | 625 |
| 1 | 1 | 20 | 338 | 400 | 750 |
| 1 | 1 | 20 | 388 | 450 | 900 |
| 1 | 1 | 20 | 438 | 500 | 1000 |
| 2 | 2 | 25 | 125 | 200 | 430 |
| 2 | 2 | 25 | 175 | 250 | 625 |
| 2 | 2 | 25 | 225 | 300 | 820 |
| 2 | 2 | 25 | 275 | 350 | 1015 |
| 2 | 2 | 25 | 325 | 400 | 1200 |
| 2 | 2 | 25 | 375 | 450 | 1400 |
| 2 | 2 | 25 | 425 | 500 | 1600 |
| 2 | 2 | 25 | 525 | 600 | 1800 |
| 3 | 3 | 32 | 156 | 250 | 1000 |
| 3 | 3 | 32 | 206 | 300 | 1300 |
| 3 | 3 | 32 | 256 | 350 | 1550 |
| 3 | 3 | 32 | 306 | 400 | 1850 |
| 3 | 3 | 32 | 356 | 450 | 2100 |
| 3 | 3 | 32 | 405 | 500 | 2400 |
| 3 | 3 | 32 | 506 | 600 | 2700 |
| 4 | 4 | 40 | 182,5 | 300 | 1650 |
| 4 | 4 | 40 | 232,5 | 350 | 2150 |
| 4 | 4 | 40 | 282,5 | 400 | 2650 |
| 4 | 4 | 40 | 332,5 | 450 | 3100 |
| 4 | 4 | 40 | 382,5 | 500 | 3600 |
| 4 | 4 | 40 | 482,5 | 600 | 4200 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
