Extension sleeve DIN 2187, taper 3/1
Product number:
01-65-3/1
Customs tariff number
8466 1020
European Article Number
4260073570183
Weight
0,4 kg
Stock:
30
Related links:
Request Item
Product information "Extension sleeve DIN 2187, taper 3/1"
Extension sleeve, DIN 2187 taper 3/1
- external taper 3, internal taper 1
- completely hardened and ground
| External taper: | 3 |
|---|---|
| Internal taper: | 1 |
| Type: | Extension sleeves |

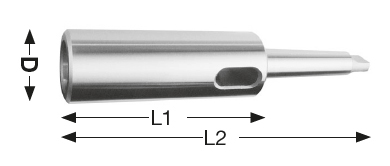

Technical Data
| Außenkegel / External taper |
Innenkegel / Internal taper |
D mm |
L1 mm |
L2 mm |
ca. g |
| 1 | 1 | 20 | 83 | 145 | 190 |
| 1 | 2 | 30 | 98 | 160 | 340 |
| 2 | 1 | 20 | 85 | 160 | 250 |
| 2 | 2 | 30 | 100 | 175 | 400 |
| 2 | 3 | 36 | 121 | 196 | 840 |
| 2 | 4 | 48 | 145 | 220 | 1300 |
| 3 | 1 | 20 | 81 | 175 | 400 |
| 3 | 2 | 30 | 100 | 194 | 550 |
| 3 | 3 | 36 | 112 | 215 | 1000 |
| 3 | 4 | 48 | 146 | 240 | 1500 |
| 4 | 1 | 20 | 82,5 | 200 | 800 |
| 4 | 2 | 30 | 97,5 | 215 | 850 |
| 4 | 3 | 36 | 122,5 | 240 | 1300 |
| 4 | 4 | 48 | 147,5 | 265 | 1900 |
| 4 | 5 | 63 | 182,5 | 300 | 3310 |
| 5 | 1 | 20 | 82,5 | 232 | 1800 |
| 5 | 2 | 30 | 97,5 | 247 | 1900 |
| 5 | 3 | 36 | 118,5 | 268 | 2150 |
| 5 | 4 | 48 | 150,5 | 300 | 2750 |
| 5 | 5 | 63 | 182,5 | 335 | 4200 |
| 5 | 6 | 82 | 247 | 396 | 640 |
| 6 | 3 | 36 | 120 | 330 | 4580 |
| 6 | 4 | 48 | 180 | 355 | 5420 |
| 6 | 5 | 63 | 180 | 390 | 6750 |
| 6 | 6 | 82 | 241 | 451 | 11890 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
