Spindle sleeve MT metric 80/6
€78.26*
€93.13 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
01-83-80/6
Customs tariff number
8466 1020
European Article Number
4049794036662
Weight
2 kg
Stock:
6
Related links:
Request Item
Product information "Spindle sleeve MT metric 80/6"
Spindle sleeve
for tools with morse taper
- external taper MT metric 80
- internal taper MT 6
| External taper: | metric 80 |
|---|---|
| Internal taper: | 6 |
| Type: | Spindle sleeves |

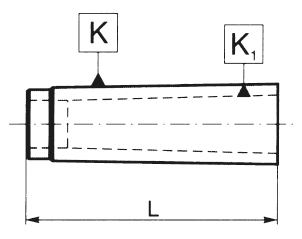

Technical Data
| Außenkegel-MK / External taper-MT |
Innenkegel-MK / Internal taper-MT |
L mm |
| 2 | 1 | 60 |
| 3 | 1 | 70 |
| 3 | 2 | 70 |
| 4 | 2 | 70 |
| 4 | 3 | 70 |
| 5 | 2 | 77 |
| 5 | 3 | 77 |
| 5 | 4 | 110 |
| 6 | 3 | 110 |
| 6 | 4 | 110 |
| 6 | 5 | 110 |
| metrisch / metric 80 | 5 | 110 |
| metrisch / metric 80 | 6 | 110 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
