Spindle sleeve with draw-off thread / nut, MT 5/2
€48.60*
€57.83 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
01-84-5/2
Customs tariff number
8466 1020
European Article Number
4049794004449
Weight
1,6 kg
Stock:
1
Related links:
Request Item
Product information "Spindle sleeve with draw-off thread / nut, MT 5/2"

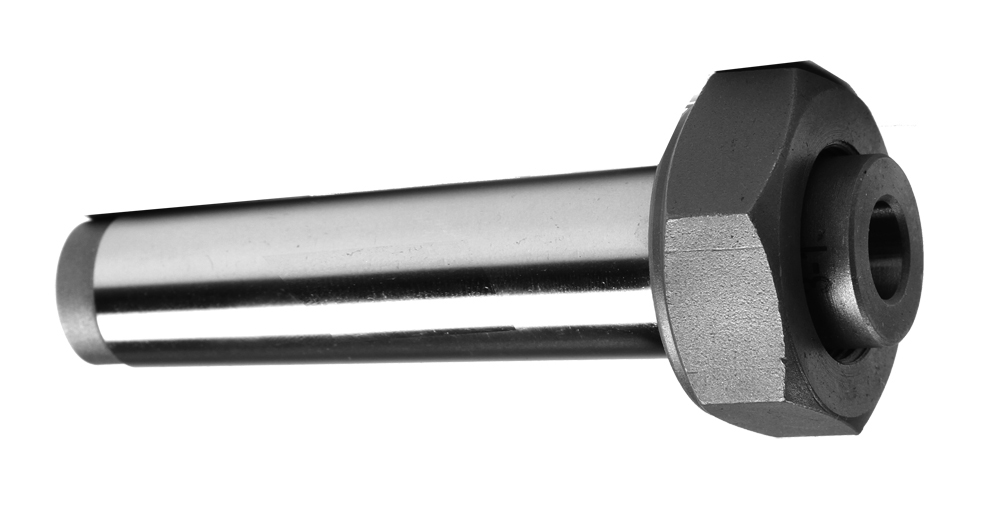

Spindle sleeve with draw-off thread and nut
- spindle sleeve for tools with morse taper
- external taper MT 5
- internal taper MT 2
| External taper: | 5 |
|---|---|
| Internal taper: | 2 |
| Type: | Spindle sleeves |

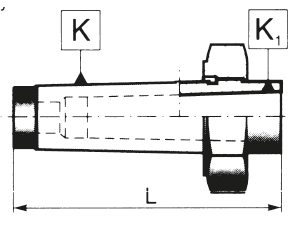

Technical Data
| Außenkegel-MK / External taper-MT |
Innenkegel-MK / Internal taper-MT |
L mm |
| 2* | 1 | 84 |
| 3* | 1 | 102 |
| 4* | 1 | 122 |
| 3 | 2 | 102 |
| 4 | 2 | 122 |
| 4 | 3 | 122 |
| 5 | 2 | 153 |
| 5 | 3 | 153 |
| 5 | 4 | 153 |
| 6 | 4 | 212 |
| 6 | 5 | 212 |
| * mit Austreibschlitz / with drift slot | ||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
