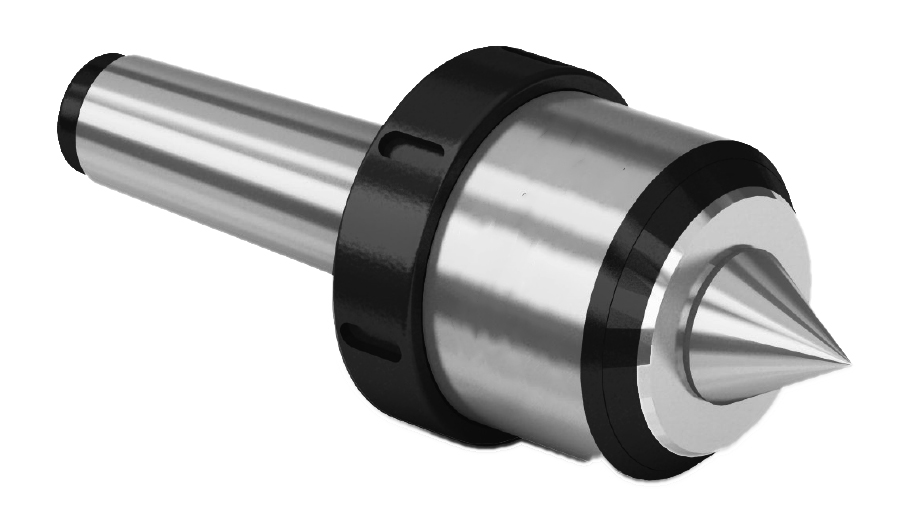

Revolving tailstock centre,1605 standard MT 3
€372.67*
€443.48 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
03-1603
Customs tariff number
8466 2091
European Article Number
4049794068816
Weight
1,1 kg
Stock:
1
Related links:
Request Item
Product information "Revolving tailstock centre,1605 standard MT 3"
Heavy-duty NC revolving tailstock centre, series 1605 - Standard
- MT 3
- with draw-off nut

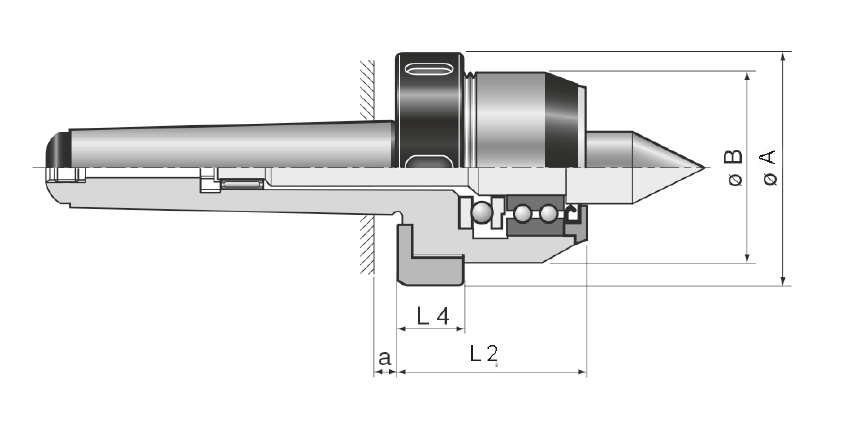

Technical Data
| MK / MT |
A mm |
B mm |
L1 mm |
L2 mm |
Drehzahl / Speed max. |
Rundlaufgenauigkeit / Run-out max. mm |
kg |
| 3 | 69 | 55 | 49 | 22 | 7000 | 0,005 | 1,1 |
| 4 | 74 | 61 | 57 | 24 | 5500 | 0,005 | 1,9 |
| 5 | 92 | 80 | 65 | 24 | 4500 | 0,005 | 3,9 |
| 6 | 104 | 93 | 75 | 27 | 3200 | 0,008 | 8,8 |

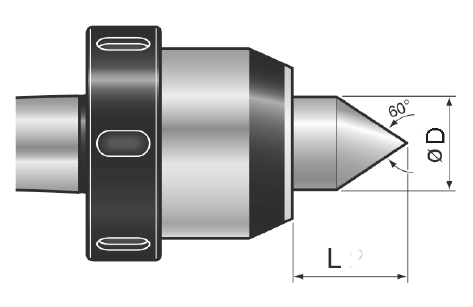

| MK / MT |
D mm |
L mm |
| 3 | 22 | 28 |
| 4 | 29 | 40 |
| 5 | 38 | 48 |
| 6 | 42 | 55 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
