Revolving tailstock centre, series 805 MT 3
€851.76*
€1,013.59 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
03-835
Customs tariff number
8466 2091
European Article Number
4049794005521
Weight
1,5 kg
Stock:
2
Related links:
Request Item
Product information "Revolving tailstock centre, series 805 MT 3"
High performance revolving tailstock centre, series 805
- type 835
- MT 3
- especially developed for use on NC-machines with
draw-off nut
- completely hardened and ground
- centre tip supported by needle bearings
- for high speeds with optimum concentricity
- permanent lubrication
- with additional sealing also suitable for
grinding machines

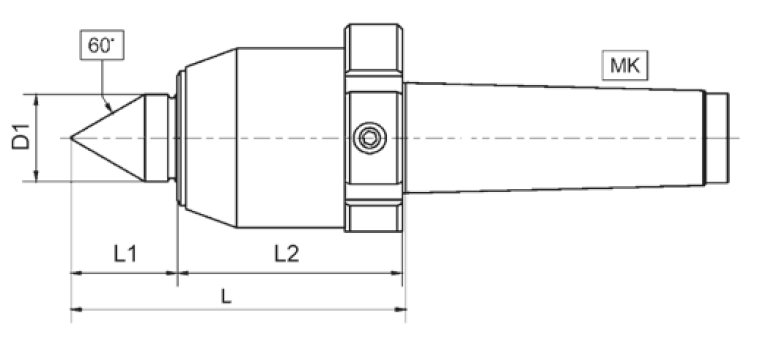

Technical Data
| Typ / Type |
MK / MT |
D mm |
D1 mm |
L mm |
L1 mm |
L2 mm |
Drehzahl / Speed max. |
Werkstück / Work piece max. kg |
Rundlaufgenauigkeit / Run-out max. mm |
G |
| 835 | 3 | 52 | 25 | 94 | 30 | 57 | 12000 | 300 | 0,003 | M 54 x 1,5 |
| 845 | 4 | 60 | 28 | 106 | 35 | 63 | 10000 | 600 | 0,003 | M 62 x 1,5 |
| 855 | 5 | 72 | 35 | 136 | 43 | 82 | 8000 | 1200 | 0,003 | M 74 x 1,5 |
| 865 | 6 | 83 | 44 | 148 | 50 | 88 | 5000 | 2500 | 0,007 | M 85 x 1,5 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||||||||
