Revolving tailstock centre, series 80 KOP MT 3
€258.91*
€308.10 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
03-80-03KOP
Customs tariff number
8466 2091
European Article Number
4260073571340
Weight
0,6 kg
Stock:
5
Related links:
Request Item
Product information "Revolving tailstock centre, series 80 KOP MT 3"
Precision revolving tailstock centre, series 80 KOP
with extended tip 30°/ 60°
- type 83 KOP
- MT 3
- solid design
- centre tip with needle bearings
- slim design with small casing diameter
- maintenance-free lubrication
- housing hardened and ground

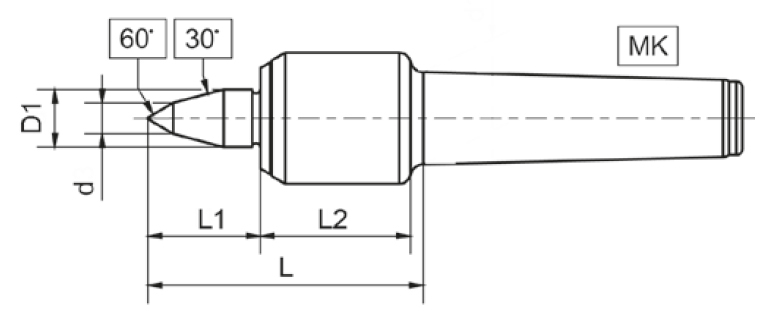

Technical Data
| Typ / Type |
MK / MT |
D mm |
D1 mm |
L mm |
L1 mm |
L2 mm |
d mm |
Drehzahl / Speed max. |
Werkstück / Work piece max. kg |
Rundlaufgenauigkeit / Run-out max. mm |
| 82 KOP | 2 | 32 | 15 | 74 | 29 | 39 | 8 | 6000 | 150 | 0,005 |
| 83 KOP | 3 | 34 | 15 | 74 | 29 | 39 | 8 | 6000 | 300 | 0,005 |
| 84 KOP | 4 | 43 | 20 | 86 | 36 | 43 | 10 | 6000 | 700 | 0,005 |
| 85 KOP | 5 | 58 | 30 | 116 | 48 | 59 | 12 | 4000 | 1000 | 0,01 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
