Revolving tailstock centre, series 80 MT 5
€421.92*
€502.08 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
03-80-05
Customs tariff number
8466 2091
European Article Number
4260073571326
Weight
2,8 kg
Stock:
2
Related links:
Request Item
Product information "Revolving tailstock centre, series 80 MT 5"
Precision revolving tailstock centre, series 80
- type 85
- MT 5
- solid design
- centre tip with needle bearings
- slim design with small casing diameter
- maintenance-free lubrication
- housing hardened and ground

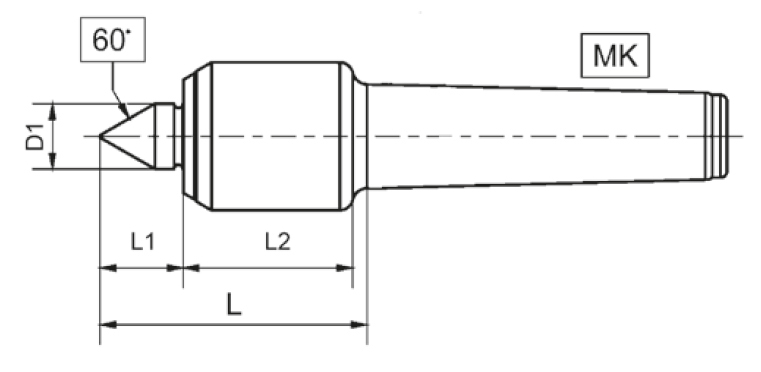

Technical Data
| Typ / Type |
MK / MT |
D mm |
D1 mm |
L mm |
L1 mm |
L2 mm |
Drehzahl / Speed max. |
Werkstück / Work piece max. kg |
Rundlaufgenauigkeit / Run-out max. mm |
| 82 | 2 | 32 | 15 | 64 | 19,5 | 39 | 6000 | 200 | 0,005 |
| 83 | 3 | 34 | 15 | 64 | 19,5 | 39 | 6000 | 400 | 0,005 |
| 84 | 4 | 43 | 20 | 77 | 27 | 43 | 6000 | 800 | 0,005 |
| 85 | 5 | 58 | 30 | 105 | 37 | 59 | 4000 | 1200 | 0,008 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
