Revolving tube centre pointed, MT 2
Product number:
03-ZKS-2
Customs tariff number
8466 2091
European Article Number
4049794682449
Weight
4,4 kg
Stock:
0
Related links:
Request Item
Product information "Revolving tube centre pointed, MT 2"
Revolving tube centre pointed
MT 2
- hardened and ground
- Ø 135 mm

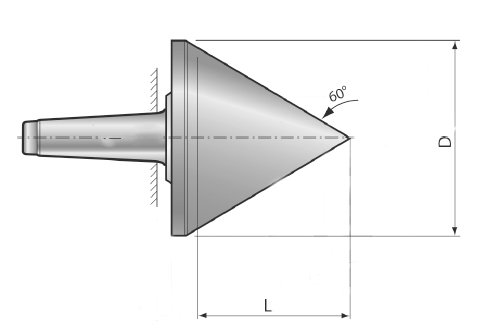

Technical Data
| MK / MT |
D mm |
L mm |
Winkel / Angle |
Drehzahl / Speed max. |
Rundlaufgenauigkeit / Run-out max. mm |
kg |
| 2 | 135 | 110 | 60° | 4500 | 0,008 | 4,4 |
| 3 | 135 | 110 | 60° | 4500 | 0,008 | 5,5 |
| 4 | 135 | 110 | 60° | 4000 | 0,008 | 6,6 |
| 5 | 158 | 135 | 60° | 3600 | 0,008 | 11 |
| 6 | 158 | 135 | 60° | 3600 | 0,008 | 19,8 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
