Product information "Test arbor DIN 69880, VDI 25"
Test arbor VDI 25 - DIN 69880
- wooden case and calibration certificate upon request
DIN: | 69880 |
---|---|
Type: | Test arbors |
VDI: | 25 |

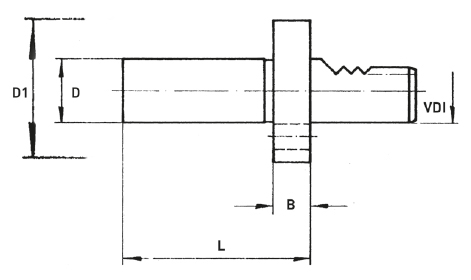

Technical Data
VDI | D mm |
D1 mm |
L mm |
B mm |
16 | 30 | 40 | 120 | 15 |
20 | 40 | 50 | 150 | 15 |
25 | 40 | 58 | 150 | 15 |
30 | 40 | 68 | 200 | 15 |
40 | 40 | 83 | 200 | 15 |
50 | 40 | 98 | 200 | 15 |
Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
