Broach tool holder VDI 40, mounting 16 mm
€356.62*
Available, delivery time: 1-3 workdays
Product information "Broach tool holder VDI 40, mounting 16 mm"
Broach tool holder with VDI shank, VDI 40
- VDI 40
- mounting Ø 16 mm
| Type: | Broach tool holders |
|---|---|
| VDI: | 40 |

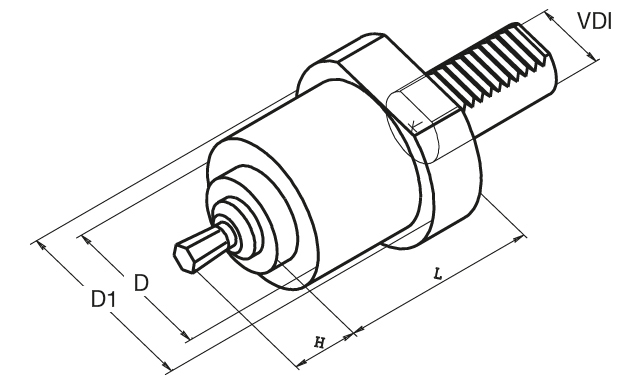

Technical Data
| VDI | D mm |
D1 mm |
L mm |
H mm |
Aufnahme / Mounting |
| 30 | 58 | 68 | 83 | 25 | Ø 12 |
| 30 | 58 | 68 | 83 | 40 | Ø 16 |
| 40 | 58 | 83 | 83 | 25 | Ø 12 |
| 40 | 58 | 83 | 83 | 40 | Ø 16 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
