Reduction sleeve slotted, RZ-32-16
€13.18*
€15.68 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
47-RZ-32-16
Customs tariff number
8466 1031
European Article Number
4260073574792
Weight
0,25 kg
Stock:
13
Related links:
Request Item
Product information "Reduction sleeve slotted, RZ-32-16"
Reduction sleeve RZ 32-16, slotted
- D: 32 mm
- Ø 16 mm

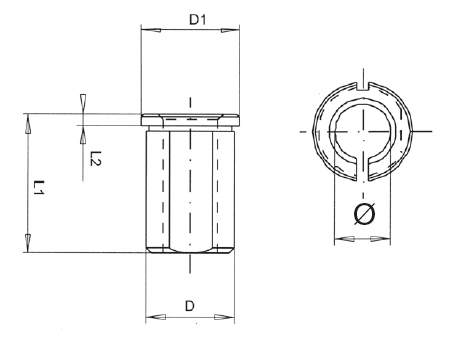

Technical Data
| D mm |
Ø mm |
D1 mm |
L1 mm |
L2 mm |
| 20 | 8, 10, 12, 14, 16 | 24 | 50 | 4 |
| 25 | 8, 10, 12, 14, 16, 18, 20 | 29 | 50 | 4 |
| 32 | 8, 10, 12, 14, 16, 18, 20, 25 | 36 | 60 | 4 |
| 40 | 10, 12, 14, 16, 18, 20, 25, 32 | 44 | 75 | 4 |
| 50 | 20, 25, 32, 40 | 54 | 75 | 4 |
| 60 | 25, 32, 40, 50 | 64 | 75 | 4 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
