VDI 40 radial tool holder, right hand, short, B1
€57.53*
€68.46 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
47-B1-40-25
Customs tariff number
8466 1031
European Article Number
4260073572569
Weight
2,3 kg
Stock:
43
Related links:
Request Item
Product information "VDI 40 radial tool holder, right hand, short, B1"
Type B1, VDI 40 radial tool holder, right hand, short
- VDI-Tool holder
- type B1-40-25
| Type: | B1 |
|---|---|
| VDI: | 40 |

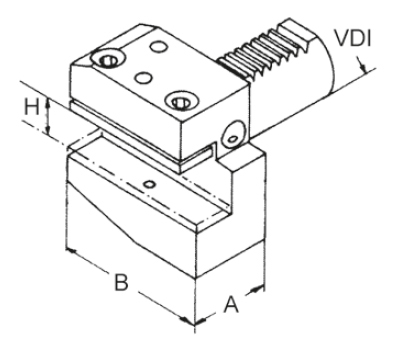

Technical Data
| VDI | H mm |
A mm |
B mm |
| 16 | 10/12 | 24 | 42 |
| 20 | 12/16 | 30 | 55 |
| 25 | 12/16 | 30 | 55 |
| 30 | 16/20 | 40 | 70 |
| 40 | 20/25 | 44 | 85 |
| 50 | 25/32 | 55 | 100 |
| 60 | 25/32 | 60 | 125 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
