VDI 50 multiple square tool holder, type D1
€129.24*
€153.80 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
47-D1-50-32
Customs tariff number
8466 1031
European Article Number
4260073573399
Weight
6,3 kg
Stock:
4
Related links:
Request Item
Product information "VDI 50 multiple square tool holder, type D1"
Type D1, VDI 50 multiple square tool holder
- VDI-Tool holder
- type D1-50-32
| Type: | D1 Multiple square tool holder |
|---|---|
| VDI: | 50 |

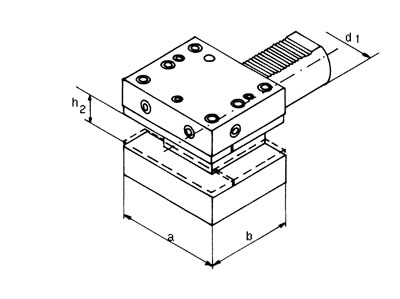

Technical Data
| VDI | h2 mm |
a mm |
b mm |
| 25 | 12/16 | 66 | 48 |
| 30 | 16/20 | 76 | 60 |
| 40 | 20/25 | 90 | 72 |
| 50 | 25/32 | 105 | 85 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
