Base plate 52 mm for zero-point system type NPZS
Product number:
ZE-NPSS-52
Customs tariff number
8466 2098
European Article Number
4049794081280
Weight
4 kg
Stock:
0
Related links:
Request Item
Product information "Base plate 52 mm for zero-point system type NPZS"
Base plate 52 mm for zero-point clamping system NPZS
- suitable for self-centering vices type NPZS with jaw width 47 mm
for Order No. ZE-NPZS-47/58 and ZE-NPZS-47/138
- incl. each 1 set bolts

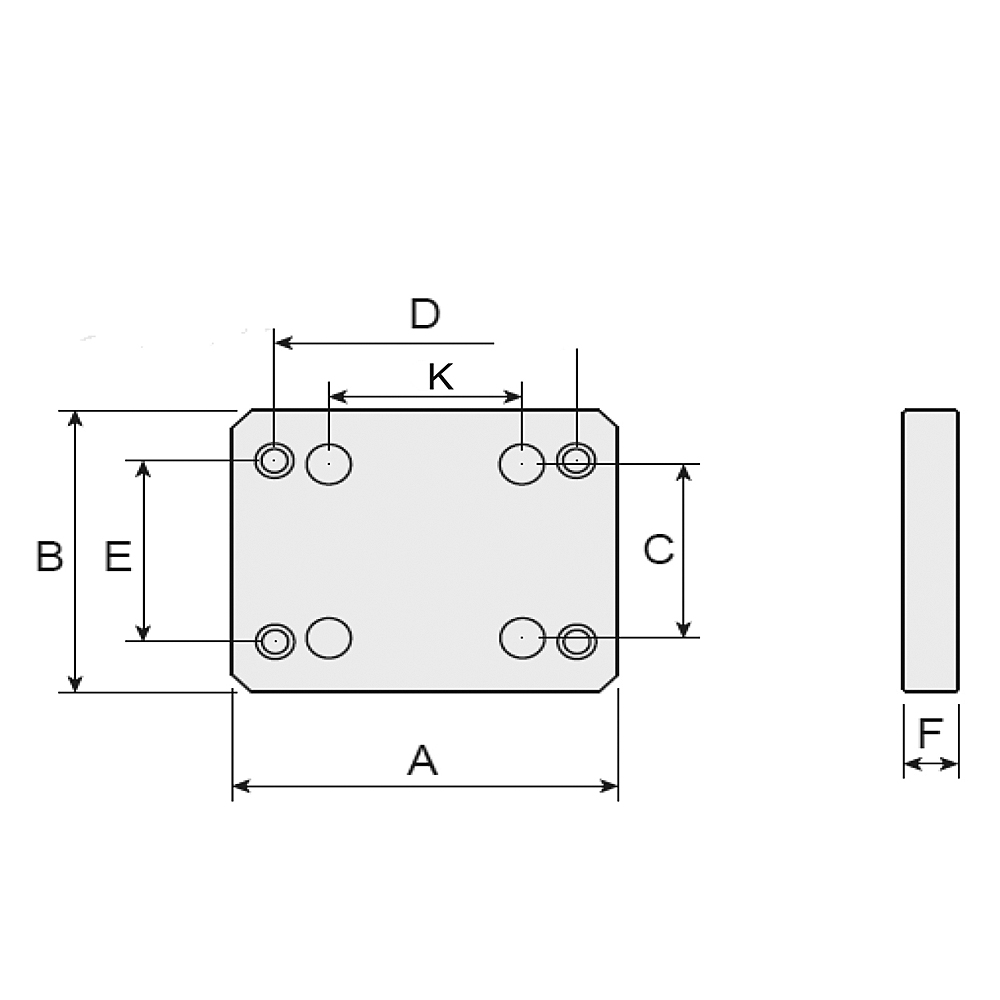

Technical Data
| A mm |
B mm |
K mm |
D mm |
E mm |
F mm |
kg |
| 150 | 116 | 52 | 100 | 50 | 27 | 4 |
| 192 | 156 | 96 | 150 | 100 | 27 | 6 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
