Lever scroll chuck Ø 130 mm, stainless steel
€901.51*
€1,072.80 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
ZE-ST66-130
Customs tariff number
8466 2091
European Article Number
4049794081013
Weight
6,2 kg
Stock:
1
Related links:
Request Item
Product information "Lever scroll chuck Ø 130 mm, stainless steel"
Three-jaw lever scroll chuck Ø 130 mm - fixed
- material stainlesss steel
- keyless, easy clamped by hand
- super thin, most fitting for use on eroding machines
- incl. 1 set of hardened reversible jaws
| Make: | Zentra |
|---|---|
| Material: | Stainless steel |
| Type: | 3-jaw lathe chucks |
| Ø : | 130 mm |

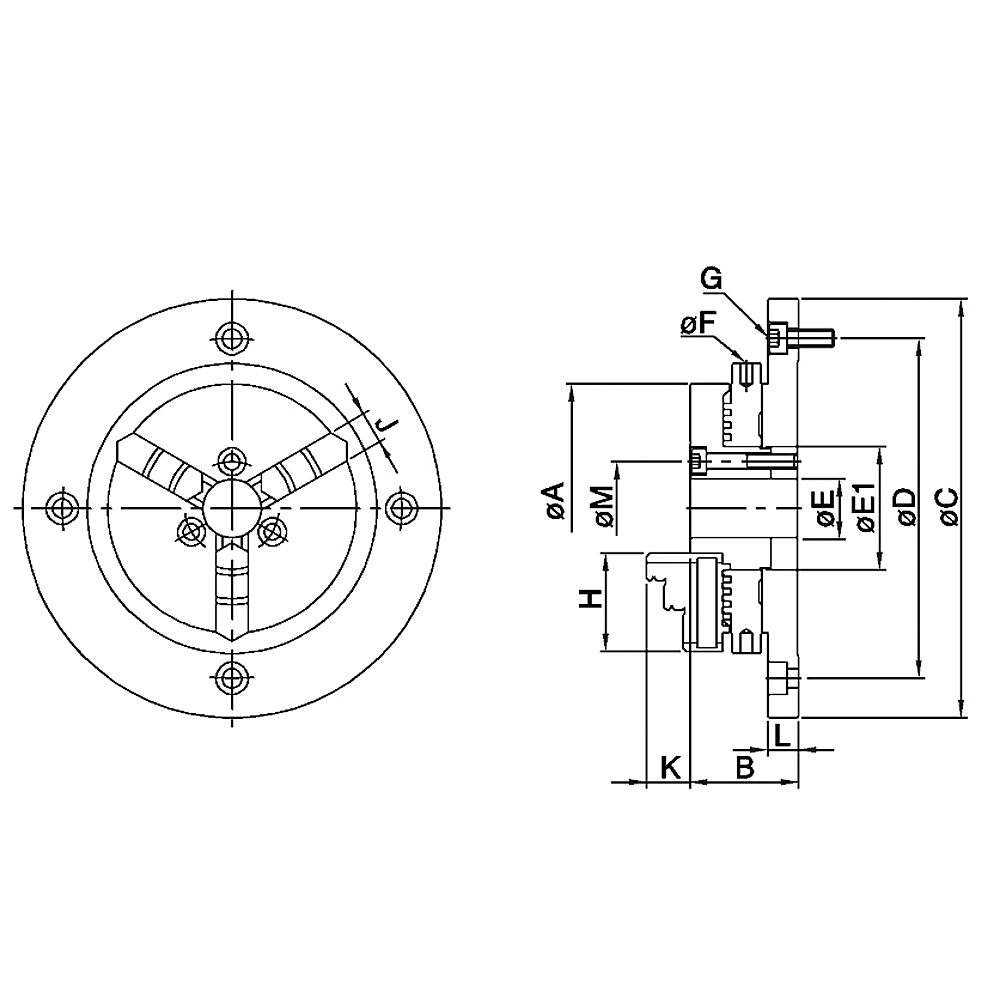

Technical Data
| A (Ø) mm |
B mm |
C mm |
D mm |
E mm |
E1 mm |
F mm |
H mm |
J mm |
K mm |
L mm |
M mm |
G mm |
kg |
| 85 | 37 | 143 | 116 | 20 | 42 | 4 | 35 | 11 | 15 | 10,5 | 32 | 4-M6x1 | 2,9 |
| 110 | 39 | 168 | 140 | 26 | 51 | 5 | 42 | 14 | 19 | 10 | 40 | 4-M6x1 | 4,3 |
| 130 | 45 | 202 | 168 | 32 | 62 | 6 | 50 | 16 | 21 | 11,5 | 49 | 4-M8x1,25 | 6,2 |
| 160 | 52 | 248 | 208 | 50 | 86 | 8 | 65 | 19 | 26 | 15 | 70 | 4-M10x1,5 | 11,1 |
| A (Ø) mm |
Spannbereich außen mm / Clamping range outside mm |
Spannbereich innen mm / Clamping range inside mm |
|||||||||||
| 85 | 1 – 81 | 24 – 73 | |||||||||||
| 110 | 1 – 100 | 27 – 90 | |||||||||||
| 130 | 1,5 – 116 | 33 – 106 | |||||||||||
| 160 | 1,5 – 160 | 39 – 148 | |||||||||||
| Inkl. 1 Satz gehärteter Umkehrbacken / Incl. 1 set hardened reversible jaws |
|||||||||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
