Lever scroll chuck Ø 80 mm, revolving
€390.96*
€465.24 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
ZE-SZ66-080
Customs tariff number
8466 2091
European Article Number
4049794080924
Weight
1,2 kg
Stock:
1
Related links:
Request Item
Product information "Lever scroll chuck Ø 80 mm, revolving"
Three-jaw lever scroll chuck Ø 80 mm, revolving
- material steel
- keyless, easy clamped by hand
- super thin, most fitting for use on measuring machines
- incl. 1 set each of solid jaws internally / externally stepped
| Make: | Zentra |
|---|---|
| Material: | Steel |
| Type: | 3-jaw lathe chucks |
| Ø : | 80 mm |

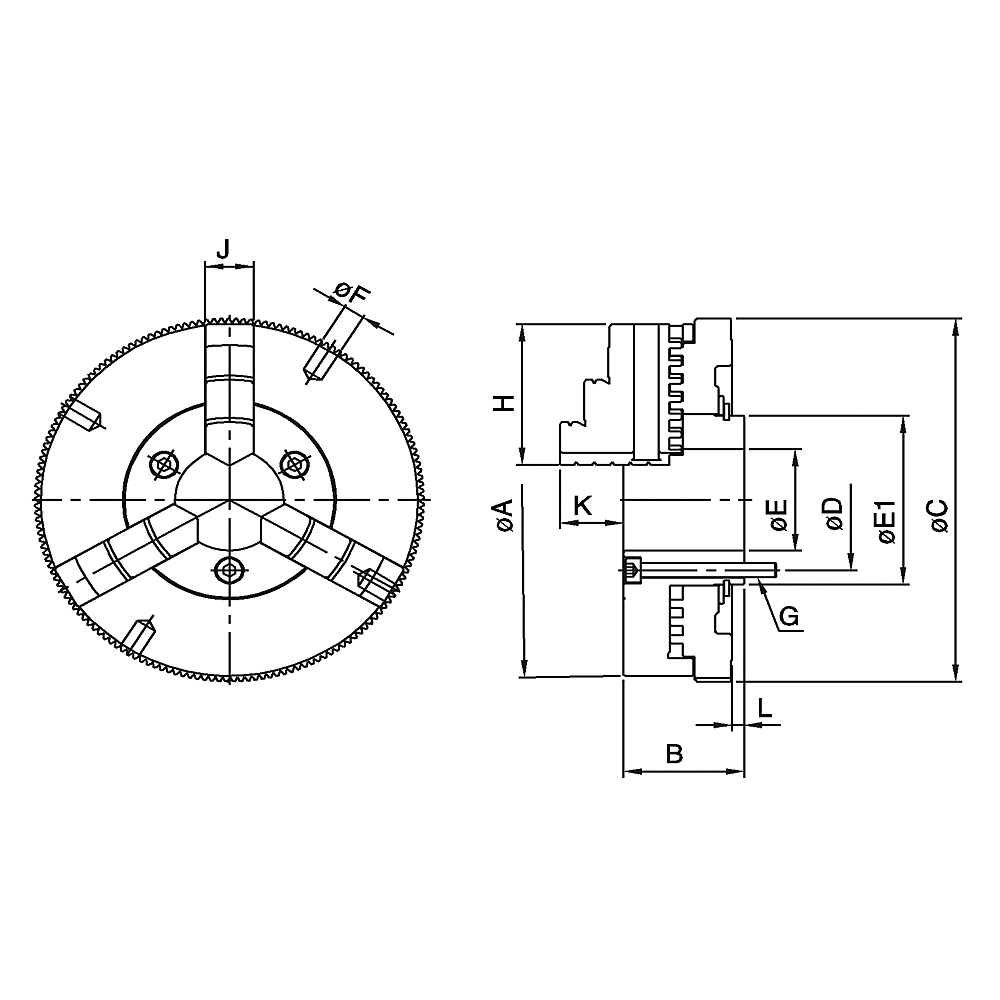

Technical Data
| A (Ø) mm |
B mm |
C mm |
D mm |
E mm |
E1 mm |
F mm |
H mm |
J mm |
K mm |
L mm |
G mm |
kg |
| 80 | 34 | 90 | 30 | 20 | 38 | 4,2 | 35 | 11 | 15 | 4 | 3-M4x0,7 | 1,2 |
| 110 | 37 | 120 | 42 | 32 | 50 | 5,2 | 42 | 14 | 19 | 4 | 3-M4x0,7 | 2,7 |
| 125 | 40 | 135 | 50 | 36 | 60 | 6,2 | 50 | 16 | 21 | 4 | 3-M5x0,8 | 3,8 |
| A (Ø) mm |
Spannbereich außen mm / Clamping range outside mm |
Spannbereich innen mm / Clamping range inside mm |
||||||||||
| 80 | 1 – 78,5 | 24 – 72,5 | ||||||||||
| 110 | 1 – 105 | 27 – 97 | ||||||||||
| 125 | 3 – 120 | 33 – 110 | ||||||||||
| Inkl. Je 1 Satz Dreh- und Bohrbacken / Incl. 1 set each of solid jaws internally / externally stepped |
||||||||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||||||||||
