Power milling chuck BT 40, Ø 32 x 105 mm
Product information "Power milling chuck BT 40, Ø 32 x 105 mm"
Power milling chuck MAS BT, BT40
- MAS BT AD
- balanced G = 6,3
- BT 40
- d: 32 mm
- L: 105 mm
- incl. wrench
| Size: | BT 40 |
|---|---|
| Tool holders: | MAS BT |
| Type: | Power milling chuck |
| Ø : | 32 mm |

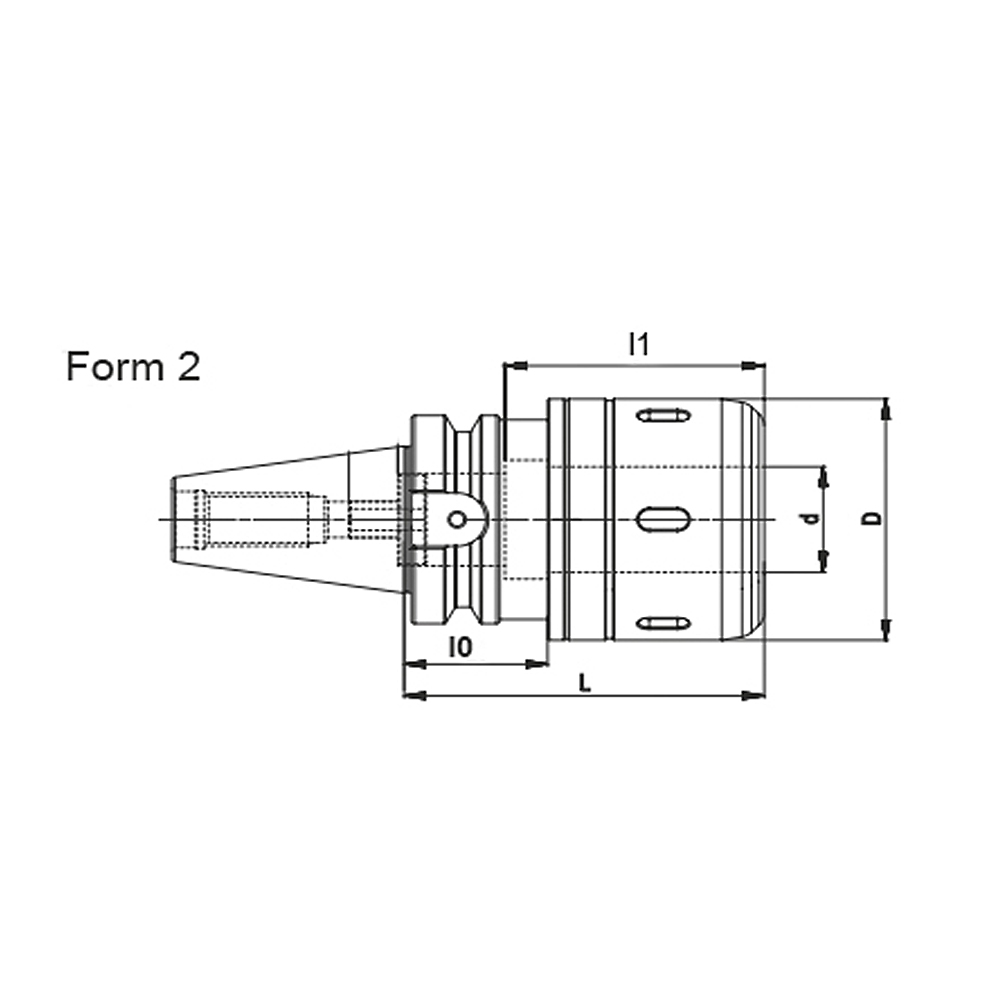

Technical Data
| Größe / Size |
d mm |
D mm |
L mm |
l0 mm |
l1 mm |
Spannweite mm / Capacity mm |
Form / Form |
| BT 40 | 20 | 52 | 90 | - | - | 3 – 16 | 1 |
| BT 40 | 32 | 73 | 105 | 44 | 23 | 3 – 25 | 2 |
| BT 50 | 32 | 73 | 105 | - | - | 3 – 25 | 1 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||
