Power milling chuck HSK-A63, Ø 32 x 105 mm
Product number:
13-KFHSK63A-32-105
Customs tariff number
8466 1038
European Article Number
4049794684368
Weight
2,5 kg
Stock:
0
Related links:
Request Item
Product information "Power milling chuck HSK-A63, Ø 32 x 105 mm"
Power milling chuck HSK-A 63 Ø 32 mm
- balanced G = 2,5
- HSK 63 form A
- d: 32 mm
- L: 105 mm
- incl. wrench
| Size: | HSK-A 63 |
|---|---|
| Type: | Power milling chuck |
| Ø : | 32 mm |

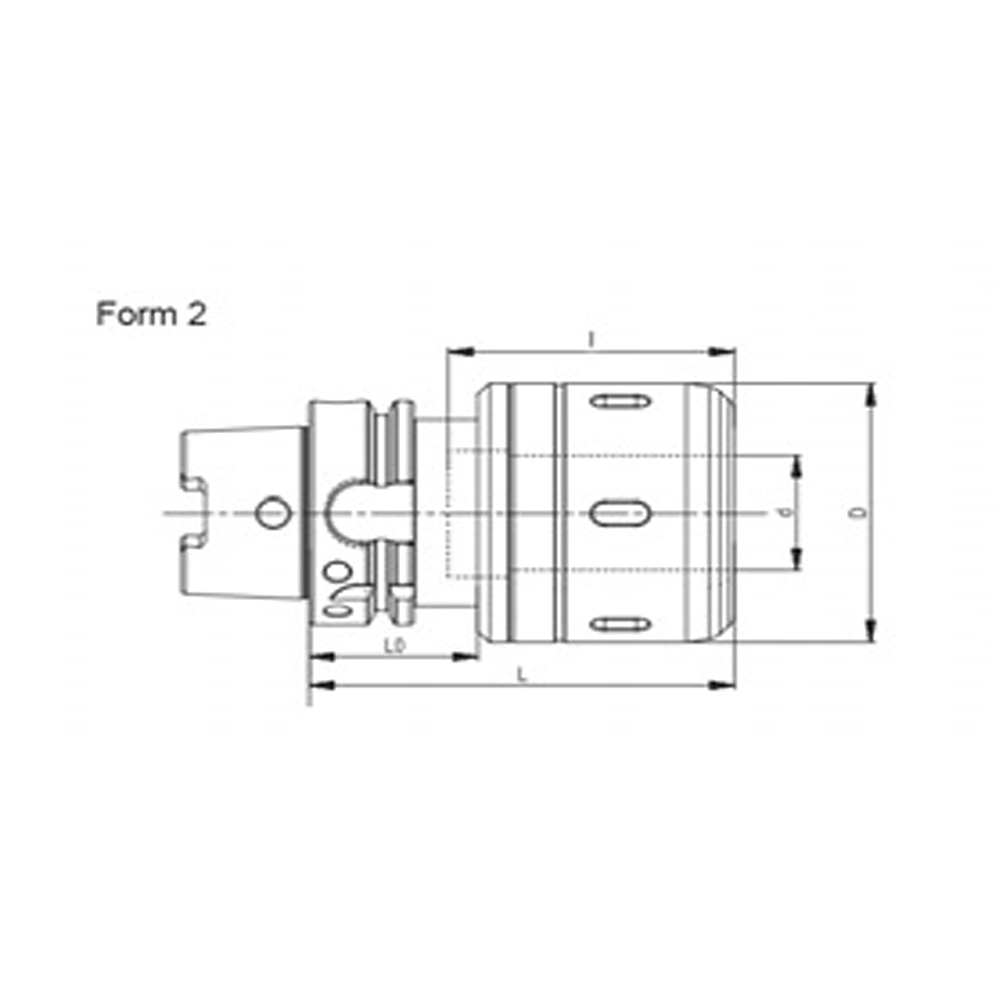

Technical Data
| Größe / Size |
d mm |
D mm |
L mm |
L1 mm |
l mm |
l0 mm |
Spannweite mm / Capacity mm |
Form / Form |
| HSK63A | 20 | 52 | 90 | 64 | 60 | - | 3 – 16 | 1 |
| HSK63A | 32 | 73 | 120 | - | 90 | 42 | 3 – 25 | 2 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
