Aluminium assembly support, ISO-DIN-CAT-BT 30

Preview: Aluminium assembly support, ISO-DIN-CAT-BT 30 Preview: Detail 1 Aluminium assembly support, ISO-DIN-CAT-BT 30 Preview: Detail 2 Aluminium assembly support, ISO-DIN-CAT-BT 30
Aluminium assembly support, ISO-DIN-CAT-BT 30

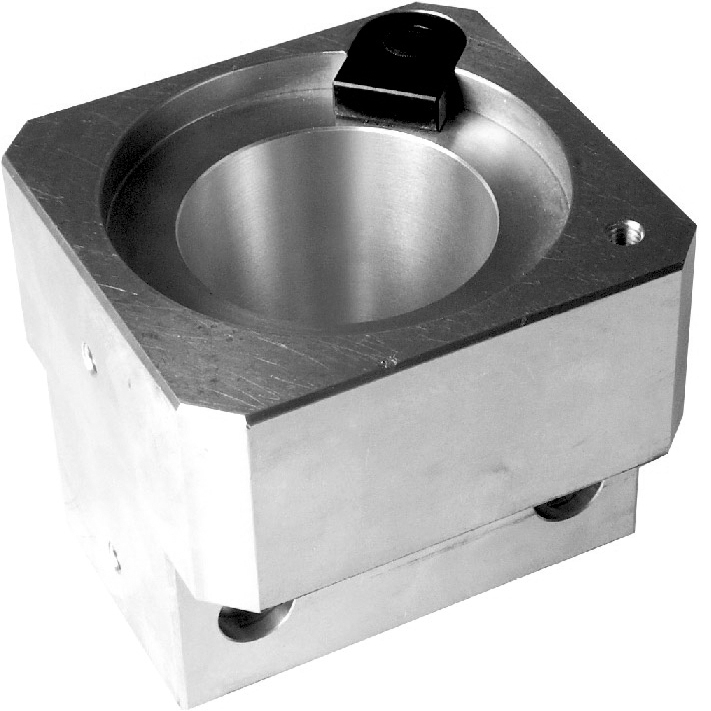

Detail 1 Aluminium assembly support, ISO-DIN-CAT-BT 30
Detail 2 Aluminium assembly support, ISO-DIN-CAT-BT 30

€85.54 *
€101.79 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 09-TAL30
  • Customs tariff number: 8466 1038
  • European article number: 4049794023167
  • Weight: 0,65 kg
  • In stock: 2
Description Technical data Evaluations 0
Description
Aluminium assembly support for ISO-DIN-CAT-BT 30 - for   DIN 2080 / DIN 69871 / ANSI... more
Close menu
Product information "Aluminium assembly support, ISO-DIN-CAT-BT 30"

Aluminium assembly support
for ISO-DIN-CAT-BT 30

- for
  DIN 2080 / DIN 69871 / ANSI CAT / MAS BT
- (A x B): 80 x 75 mm

Related links to "Aluminium assembly support, ISO-DIN-CAT-BT 30"
Technical data
A mm B mm Für / For 80 75 ISO-DIN-CAT-BT30 90 85... more
Zurück
A
mm		 B
mm		 Für /
For
80 75 ISO-DIN-CAT-BT30
90 85 ISO-DIN-CAT-BT40
120 115 ISO-DIN-CAT-BT50

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
