Assembly support HSK 40, tiltable

Preview: Assembly support HSK 40, tiltable Preview: Drawing Assembly support HSK 40, tiltable
Assembly support HSK 40, tiltable

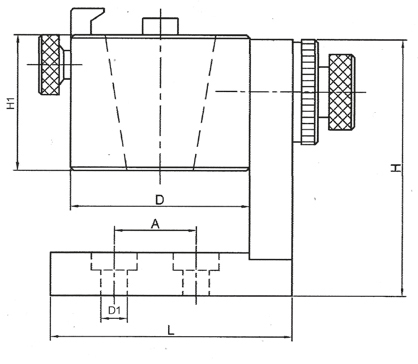

Drawing Assembly support HSK 40, tiltable

€144.07 *
€171.44 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 47-MBHSK-40
  • Customs tariff number: 8466 1038
  • European article number: 4049794070130
  • Weight: 4,95 kg
  • In stock: 5
Description Technical data Evaluations 0
Description
Assembly support HSK, tiltable - size: HSK 40 - with star handle more
Close menu
Product information "Assembly support HSK 40, tiltable"

Assembly support HSK, tiltable

- size: HSK 40
- with star handle

Related links to "Assembly support HSK 40, tiltable"
Technical data
Größe / Size D mm H1 mm D1 mm H mm A mm L mm * SK 30 / BT 30 88 46... more
Zurück
Größe /
Size		 D
mm		 H1
mm		 D1
mm		 H
mm		 A
mm		 L
mm
* SK 30 / BT 30 88 46 11 132 55 111
* SK 40 / BT 40 93 57 11 132 55 111
* SK 50 / BT 50 118 62 11 176 55 111
** VDI 16 78 50 11 132 55 111
** VDI 20 83 50 11 132 55 111
** VDI 25 93 57 11 132 55 111
** VDI 30 93 57 11 132 55 111
** VDI 40 102 57 11 132 55 111
** VDI 50 118 62 11 176 55 111
** HSK 40 85 50 11 132 55 111
** HSK 50 93 57 11 132 55 111
** HSK 63 98 57 11 132 55 111
** HSK 100 135 62 11 176 55 111

* runder Griff / round handle
** Sterngriff / star handle

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
