5C collet chuck Bison type 3975-125-5C
Product number:
353975010000
Customs tariff number
84662091
European Article Number
5907412209418
Weight
5,2 kg
Stock:
0
Related links:
Request Item
Product information "5C collet chuck Bison type 3975-125-5C"
5C-collet chuck Bison 3975-125-5C
- the wrench operated scroll provides for uniform
and distortion free clamping of workpieces while
simultaneously allowing for a fast collet exchange
- designed for use with 5C collets (385E) and can be
used for turning, facing, boring, grinding and
milling operations
- material of body: steel
- incl. 1 wrench
- collet 5C is not included
| Make: | Bison |
|---|---|
| Material: | Steel |
| Type: | 5C collet chucks |
| for collets: | 5C |
| Ø : | 125 mm |

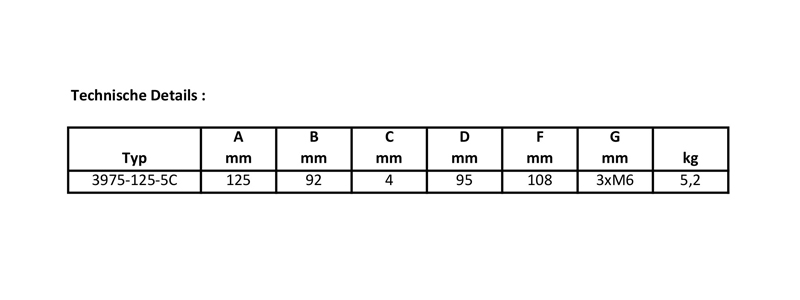

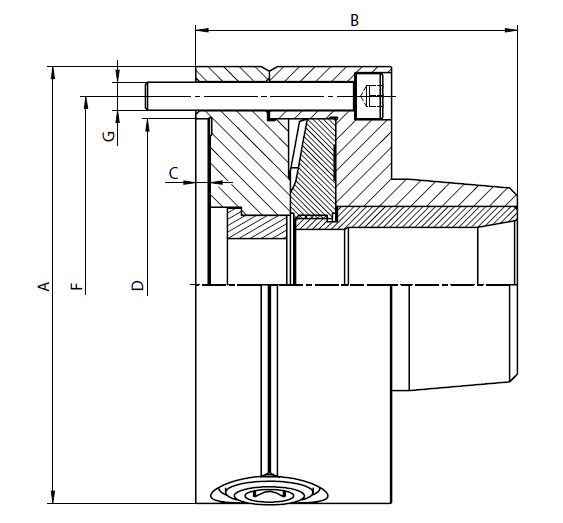

Technical Data
| Typ / Type |
A | B | C | D | F | G | kg |
| 3975-125-5C | 125 | 92 | 4 | 95 | 108 | 3xM8 | 5,2 |
| Inkl. 1 Schlüssel / Incl. 1 wrench |
|||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
