Collet chuck SK40 ER 40, DIN 2080

Preview: Collet chuck SK40 ER 40, DIN 2080 Preview: Drawing Collet chuck SK40 ER 40, DIN 2080
Collet chuck SK40 ER 40, DIN 2080

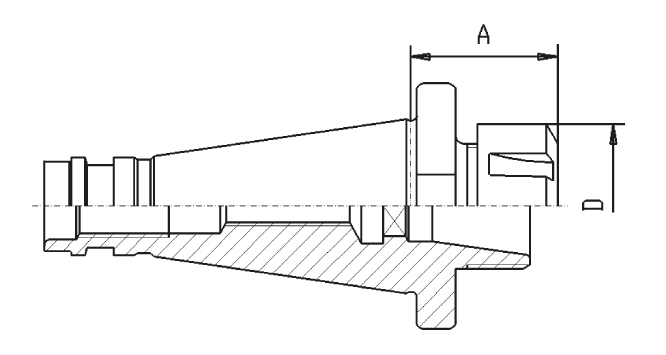

Drawing Collet chuck SK40 ER 40, DIN 2080

€38.02 *
€45.24 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 13-7616-40-40
  • Customs tariff number: 8466 1038
  • European article number: 4049794017449
  • Weight: 1,5 kg
  • In stock: 27
Description Technical data Evaluations 0
Description
Collet chuck ER 40 SK40, DIN 2080 - SK 40 - ER 40   more
Close menu
Product information "Collet chuck SK40 ER 40, DIN 2080"

Collet chuck ER 40 SK40, DIN 2080

- SK 40
- ER 40



Type: Collet chucks
DIN: 2080
Size: SK 40
for collets: ER40
Related links to "Collet chuck SK40 ER 40, DIN 2080"
Technical data
Größe / Size Spannzange / Collet A mm D mm SK 30 ER 16 50 28 SK 30... more
Zurück
Größe /
Size		 Spannzange /
Collet		 A
mm		 D
mm
SK 30 ER 16 50 28
SK 30 ER 32 50 42
SK 40 ER 16 50 28
SK 40 ER 25 50 42
SK 40 ER 32 60 50
SK 40 ER 40 60 63
SK 50 ER 32 70 50
SK 50 ER 40 70 63

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
