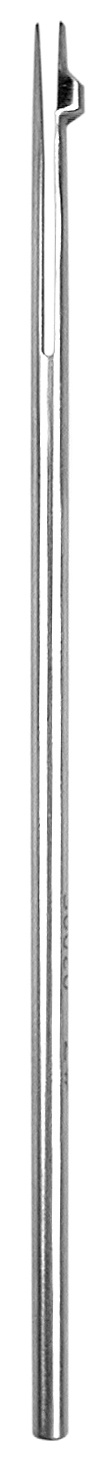

Deburring tool X-Grat Ø 3,55 - 3,96 mm, XG-3,55
€130.82*
€155.68 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
1E-XG-3,55
Customs tariff number
8207 5060
European Article Number
4049794023624
Weight
0,01 kg
Stock:
1
Related links:
Request Item
Product information "Deburring tool X-Grat Ø 3,55 - 3,96 mm, XG-3,55"
Deburring tool X-Grat Ø 3,55 - 3,96 mm,
bore-hole deburring on both sides in a single operation
- material: HSS
- no spindle stop required!
- chamfering in inaccessible locations (eg. hollow objects)
- no turning of work piece required
- simple and rugged design
- most suitable for mass production
- one piece construction allows cutting chips to clear easily
- readly adaptable to all kinds of production machines
- forward deburring angle: 45°
- reverse deburring angle: 33°

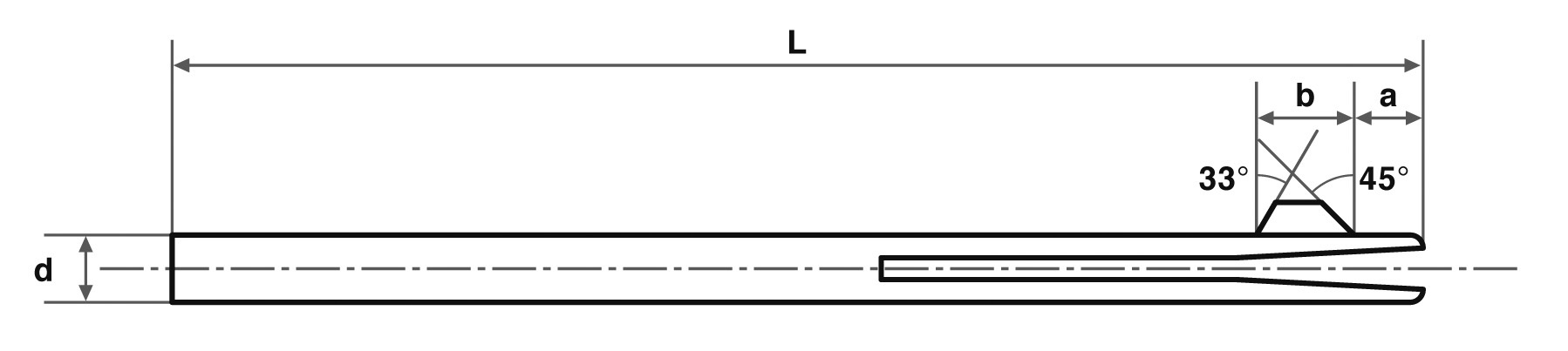

Technical Data
| Größenbereich / Range of hole size mm |
d mm |
L mm |
a mm |
b mm |
| 2,80 - 3,18 | 2,75 | 101,6 | 3,18 | 4,45 |
| 3,18 - 3,55 | 3,15 | 101,6 | 3,18 | 4,45 |
| 3,55 - 3,96 | 3,58 | 101,6 | 3,18 | 4,45 |
| 3,96 - 4,36 | 3,94 | 101,6 | 3,18 | 4,45 |
| 4,36 - 4,74 | 4,34 | 101,6 | 3,18 | 4,45 |
| 4,74 - 5,15 | 4,72 | 101,6 | 3,18 | 6,22 |
| 5,15 - 5,56 | 5,13 | 101,6 | 3,18 | 6,22 |
| Andere Abmessungen und TIN-beschichtete Ausführungen auf Anfrage erhältlich / Other sizes and TIN-coated version available upon request |
||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||
| Größe / size |
UPM / RPM |
Vorschub / Feed rate mm |
| 1,0 - 5,0 | 1750 | 0,02 - 0,10 |
| 6,0 - 9,0 | 800 - 1000 | 0,02 - 0,15 |
| ≥ 10 | 600 - 650 | 0,05 - 0,20 |
