Universal drill chuck, DIN 69871 SK 40, 1-16 mm

Preview: Universal drill chuck, DIN 69871 SK 40, 1-16 mm Preview: Drawing Universal drill chuck, DIN 69871 SK 40, 1-16 mm Preview: Emblem Babel Universal drill chuck, DIN 69871 SK 40, 1-16 mm

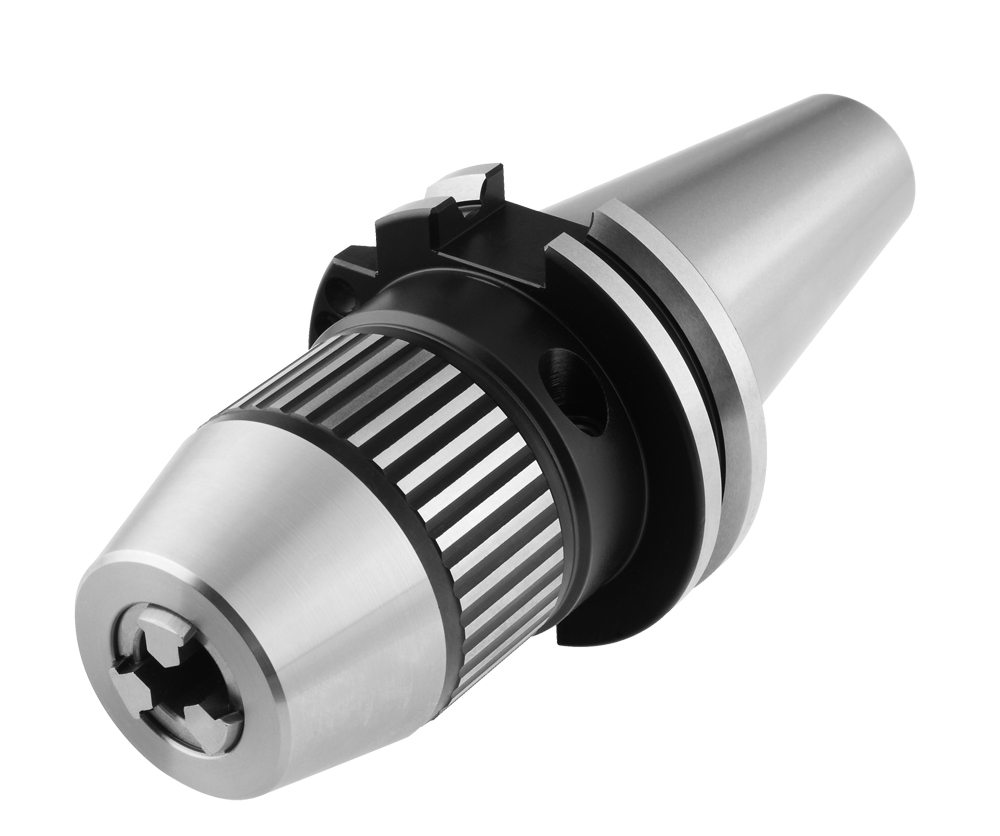

Universal drill chuck, DIN 69871 SK 40, 1-16 mm

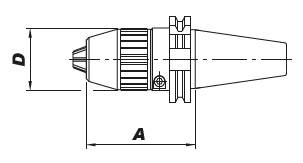

Drawing Universal drill chuck, DIN 69871 SK 40, 1-16 mm
Emblem Babel Universal drill chuck, DIN 69871 SK 40, 1-16 mm

€214.20 *
€254.90 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 82-691642
  • Customs tariff number: 8466 1038
  • European article number: 4049794005149
  • Weight: 1,75 kg
  • In stock: 28
Description Technical data Evaluations 0
Description
Universal drill chuck, DIN 69871 - shank SK 40 - capacity 1 - 16 mm - high precision... more
Close menu
Product information "Universal drill chuck, DIN 69871 SK 40, 1-16 mm"

Universal drill chuck, DIN 69871

- shank SK 40
- capacity 1 - 16 mm

- high precision
- high concentricity, runout 0,03 mm max.
- right and left rotation
- high gripping force with minimal effort
- short and sturdy design: tool shank and chuck
  are forming one unit
- simple operation: quick tool change inside or outside
  of machine, no unintentional opening in case of
  sudden spindle stop or direction reversal
- suitable for CNC and high precision machine applications
- scope of delivery: drill chuck incl. wrench

Type: Universall drill chucks
DIN: 69871
Size: SK 40
Clamping capacity: 1-16 mm
Related links to "Universal drill chuck, DIN 69871 SK 40, 1-16 mm"
Technical data
Kegel / Shank Spannweite / Capacity mm A mm D mm SK 40 1 - 13 81 45... more
Zurück
Kegel /
Shank		 Spannweite /
Capacity mm		 A
mm		 D
mm
SK 40 1 - 13 81 45
SK 40 1 - 16 87 50
SK 50 1 - 13 91 45
SK 50 1 - 16 97 50

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
