Universal drill chuck, DIN 69880 VDI 30, 1-16 mm

Preview: Universal drill chuck, DIN 69880 VDI 30, 1-16 mm Preview: Drawing Universal drill chuck, DIN 69880 VDI 30, 1-16 mm Preview: Emblem Babel Universal drill chuck, DIN 69880 VDI 30, 1-16 mm
Universal drill chuck, DIN 69880 VDI 30, 1-16 mm

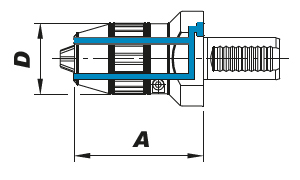

Drawing Universal drill chuck, DIN 69880 VDI 30, 1-16 mm
Emblem Babel Universal drill chuck, DIN 69880 VDI 30, 1-16 mm

€257.33 *
€306.22 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 82-341630
  • Customs tariff number: 8466 1038
  • European article number: 4260073571265
  • Weight: 1,75 kg
  • In stock: 10
Description Technical data Product Safety Information Evaluations 0
Description
Universal drill chuck, DIN 69880 (VDI) with coolant nozzles - VDI 30 - capacity 1 - 16... more
Close menu
Product information "Universal drill chuck, DIN 69880 VDI 30, 1-16 mm"

Universal drill chuck, DIN 69880 (VDI)
with coolant nozzles

- VDI 30
- capacity 1 - 16 mm

- high precision
- high concentricity, runout 0,03 mm max.
- right and left rotation
- high gripping force with minimal effort
- short and sturdy design: tool shank and chuck
  are forming one unit
- simple operation: quick tool change inside or outside
  of machine, no unintentional opening in case of
  sudden spindle stop or direction reversal
- suitable for CNC and high precision machine applications
- scope of delivery: drill chuck incl. wrench

Type: Universall drill chucks
DIN: 69880
Size: VDI 30
Related links to "Universal drill chuck, DIN 69880 VDI 30, 1-16 mm"
Technical data
VDI Spannweite / Capacity mm A mm D mm 30 1 - 13 87 50 30... more
Zurück
VDI Spannweite /
Capacity mm		 A
mm		 D
mm
30 1 - 13 87 50
30 1 - 16 92 55
40 1 - 13 88 50
40 1 - 16 93 55
50 1 - 16 101,5 55

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
Informationen zur Produktsicherheit
more
Zurück

Product Safety Information:

  • Suitable only for technically skilled users familiar with the product and for craftsmen.
  • Intended solely for the designated purpose.
  • Improper use may lead to damage and injuries.

Importer/Manufacturer:

Gedema GmbH
Berchumer Str. 74
58093 Hagen

Email: info@messwelt.com
Email: info@gedema.com

Items explicitly stating the manufacturer are excluded.
