Universal drill chuck, DIN 69880 VDI 30, 1-13 mm

Preview: Universal drill chuck, DIN 69880 VDI 30, 1-13 mm Preview: Drawing Universal drill chuck, DIN 69880 VDI 30, 1-13 mm Preview: Emblem Babel Universal drill chuck, DIN 69880 VDI 30, 1-13 mm
Universal drill chuck, DIN 69880 VDI 30, 1-13 mm

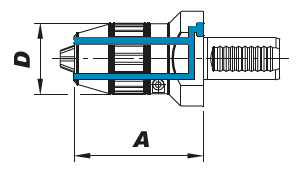

Drawing Universal drill chuck, DIN 69880 VDI 30, 1-13 mm
Emblem Babel Universal drill chuck, DIN 69880 VDI 30, 1-13 mm

€241.34 *
€287.19 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 82-341330
  • Customs tariff number: 8466 1038
  • European article number: 4260073571258
  • Weight: 1,55 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
Universal drill chuck, DIN 69880 (VDI) with coolant nozzles - VDI 30 - capacity 1 - 13... more
Close menu
Product information "Universal drill chuck, DIN 69880 VDI 30, 1-13 mm"

Universal drill chuck, DIN 69880 (VDI)
with coolant nozzles

- VDI 30
- capacity 1 - 13 mm

- high precision
- high concentricity, runout 0,03 mm max.
- right and left rotation
- high gripping force with minimal effort
- short and sturdy design: tool shank and chuck
  are forming one unit
- simple operation: quick tool change inside or outside
  of machine, no unintentional opening in case of
  sudden spindle stop or direction reversal
- suitable for CNC and high precision machine applications
- scope of delivery: drill chuck incl. wrench

Type: Universall drill chucks
DIN: 69880
Size: VDI 30
Related links to "Universal drill chuck, DIN 69880 VDI 30, 1-13 mm"
Technical data
VDI Spannweite / Capacity mm A mm D mm 30 1 - 13 87... more
Zurück
VDI Spannweite /
Capacity mm		 A
mm		 D
mm
30 1 - 13 87 50
30 1 - 16 92 55
40 1 - 13 88 50
40 1 - 16 93 55
50 1 - 16 101,5 55

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
