Universal drill chuck, DIN 69893 HSK 100A, 1-16 mm

Preview: Universal drill chuck, DIN 69893 HSK 100A, 1-16 mm Preview: Drawing Universal drill chuck, DIN 69893 HSK 100A, 1-16 mm Preview: Emblem Babel Universal drill chuck, DIN 69893 HSK 100A, 1-16 mm

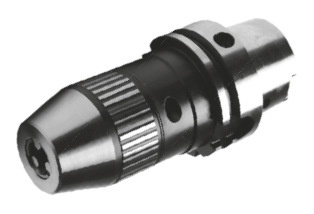

Universal drill chuck, DIN 69893 HSK 100A, 1-16 mm
Drawing Universal drill chuck, DIN 69893 HSK 100A, 1-16 mm
Emblem Babel Universal drill chuck, DIN 69893 HSK 100A, 1-16 mm

€280.44 *
€333.72 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 82-1001630
  • Customs tariff number: 8466 1038
  • European article number: 4049794005262
  • Weight: 3,65 kg
  • In stock: 27
Description Technical data Product Safety Information Evaluations 0
Description
Universal drill chuck, DIN 69893 - HSK with internal coolant supply - shank 100 A -... more
Close menu
Product information "Universal drill chuck, DIN 69893 HSK 100A, 1-16 mm"

Universal drill chuck, DIN 69893 - HSK
with internal coolant supply

- shank 100 A
- capacity 1 - 16 mm

- high precision
- high concentricity, runout 0,03 mm max.
- right and left rotation
- high gripping force with minimal effort
- short and sturdy design: tool shank and chuck
  are forming one unit
- simple operation: quick tool change inside or outside
  of machine, no unintentional opening in case of
  sudden spindle stop or direction reversal
- suitable for CNC and high precision machine applications
- scope of delivery: drill chuck incl. wrench

Type: Universall drill chucks
DIN: 69893
Size: HSK-100A
Clamping capacity: 1-16 mm
Related links to "Universal drill chuck, DIN 69893 HSK 100A, 1-16 mm"
Technical data
Kegel / Shank Spannweite / Capacity mm A mm D mm 63 A 1 - 13 107 45... more
Zurück
Kegel /
Shank		 Spannweite /
Capacity mm		 A
mm		 D
mm
63 A 1 - 13 107 45
63 A 1 - 16 112 50
100 A 1 - 16 127 50

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
Informationen zur Produktsicherheit
more
Zurück

Product Safety Information:

  • Suitable only for technically skilled users familiar with the product and for craftsmen.
  • Intended solely for the designated purpose.
  • Improper use may lead to damage and injuries.

Importer/Manufacturer:

Gedema GmbH
Berchumer Str. 74
58093 Hagen

Email: info@messwelt.com
Email: info@gedema.com

Items explicitly stating the manufacturer are excluded.
