Driven tool, VDI 30 ER 25 without IC

Preview: Driven tool, VDI 30 ER 25 without IC Preview: Drawing Driven tool, VDI 30 ER 25 without IC Preview: Detail Driven tool, VDI 30 ER 25 without IC
Driven tool, VDI 30 ER 25 without IC

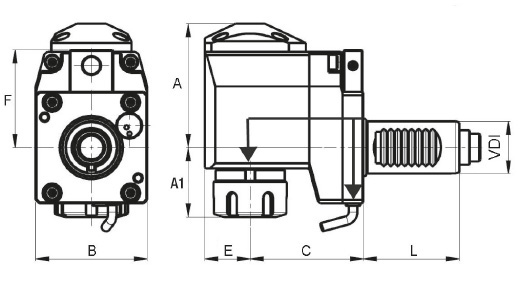

Drawing Driven tool, VDI 30 ER 25 without IC

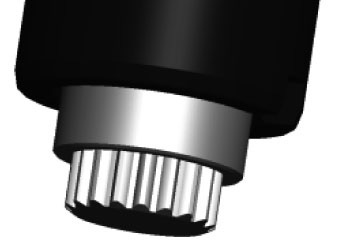

Detail Driven tool, VDI 30 ER 25 without IC

€2,152.94 *
€2,562.00 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 47-80-WVR-30-25
  • Customs tariff number: 8466 1031
  • European article number: 4049794057919
  • Weight: 6 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
Driven tool, DIN 5480, angular 90°, offset - for SAUTER turrets - coolant pressure up to... more
Close menu
Product information "Driven tool, VDI 30 ER 25 without IC"

Driven tool, DIN 5480, angular 90°, offset

- for SAUTER turrets
- coolant pressure up to 20 bar
- high-precision capsulated bearings
- suitable for high spindle speeds

- VDI 30
- ER 25
- without internal cooling

For turret: Sauter DIN 5480
Type: angular 90°, offset
VDI: 30
Collet: ER 25
Internal cooling: without
Related links to "Driven tool, VDI 30 ER 25 without IC"
Technical data
VDI SZ / Collet IK / IC Richtung / Direction C mm... more
Zurück
VDI SZ /
Collet		 IK /
IC		 Richtung /
Direction		 C
mm		 A
mm		 A1
mm		 L
mm		 F
mm		 E
mm		 B
mm		 Übersetzung /
Ratio		 Max. Drehmoment /
Max. torque Nm		 Drehzahl /
Speed min-1
30 ER 25    - rechts/right 75 71 40 55 56 26 64  1 : 1 28 6000
30 ER 25    ✓ rechts/right 75 74 40 55 56 26 64  1 : 1 28 6000

Angetriebene Werkzeuge mit VDI 50 auf Anfrage lieferbar /
Driven tools with VDI 50 available on request

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
