Driven tool VDI 40 ER 32, without IC, left

Preview: Driven tool VDI 40 ER 32, without IC, left Preview: Drawing Driven tool VDI 40 ER 32, without IC, left Preview: Detail Driven tool VDI 40 ER 32, without IC, left
Driven tool VDI 40 ER 32, without IC, left

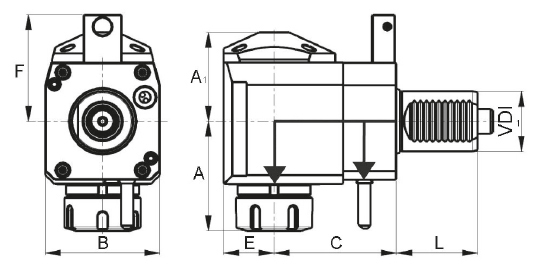

Drawing Driven tool VDI 40 ER 32, without IC, left

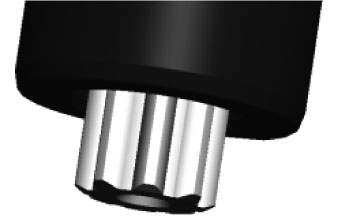

Detail Driven tool VDI 40 ER 32, without IC, left

€1,557.43 *
€1,853.34 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 47-82-WL-40-32
  • Customs tariff number: 8466 1031
  • European article number: 4049794057742
  • Weight: 6 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
Driven tool, DIN 5482, angular 90° - for SAUTER turrets - coolant pressure up to 20 bar -... more
Close menu
Product information "Driven tool VDI 40 ER 32, without IC, left"

Driven tool, DIN 5482, angular 90°

- for SAUTER turrets
- coolant pressure up to 20 bar
- high-precision capsulated bearings
- suitable for high spindle speeds

- VDI 40
- ER 32
- direction: left
- without internal cooling

For turret: Sauter DIN 5482
Type: angular 90°
VDI: 40
Collet: ER 32
Internal cooling: without
Related links to "Driven tool VDI 40 ER 32, without IC, left"
Technical data
VDI SZ / Collet IK / IC Richtung / Direction C mm A1 mm A mm L mm F mm E... more
Zurück
VDI SZ /
Collet		 IK /
IC		 Richtung /
Direction		 C
mm		 A1
mm		 A
mm		 L
mm		 F
mm		 E
mm		 B
mm		 Übersetzung /
Ratio		 Max. Drehmoment /
Max. torque Nm		 Drehzahl /
Speed min-1
30 ER 25    - rechts/right 55 48 63 45 48 26 64  1 : 1 28 6000
30 ER 25    ✓ rechts/right 55 51 63 45 48 26 64  1 : 1 28 6000
40 ER 25  - rechts/right 80 59 70 53 71 33 75  1 : 1 50 6000
40 ER 25    ✓ rechts/right 80 62 70 53 71 33 75  1 : 1 50 6000
40 ER 32  - rechts/right 80 59 74 53 71 33 75  1 : 1 50 6000
40 ER 32    ✓ rechts/right 80 62 74 53 71 33 75  1 : 1 50 6000
40 ER 25  - links/left 80 59 70 53 71 33 75  1 : 1 50 6000
40 ER 25    ✓ links/left 80 62 70 53 71 33 75  1 : 1 50 6000
40 ER 32  - links/left 80 59 74 53 71 33 75  1 : 1 50 6000
40 ER 32    ✓ links/left 80 62 74 53 71 33 75  1 : 1 50 6000

Angetriebene Werkzeuge mit VDI 50 auf Anfrage lieferbar /
Driven tools with VDI 50 available on request

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
