Driven tool HAAS VDI 40, with IC

Preview: Driven tool HAAS VDI 40, with IC Preview: Drawing Driven tool HAAS VDI 40, with IC Preview: Driven tool for HAAS turrets VDI 40, with IC

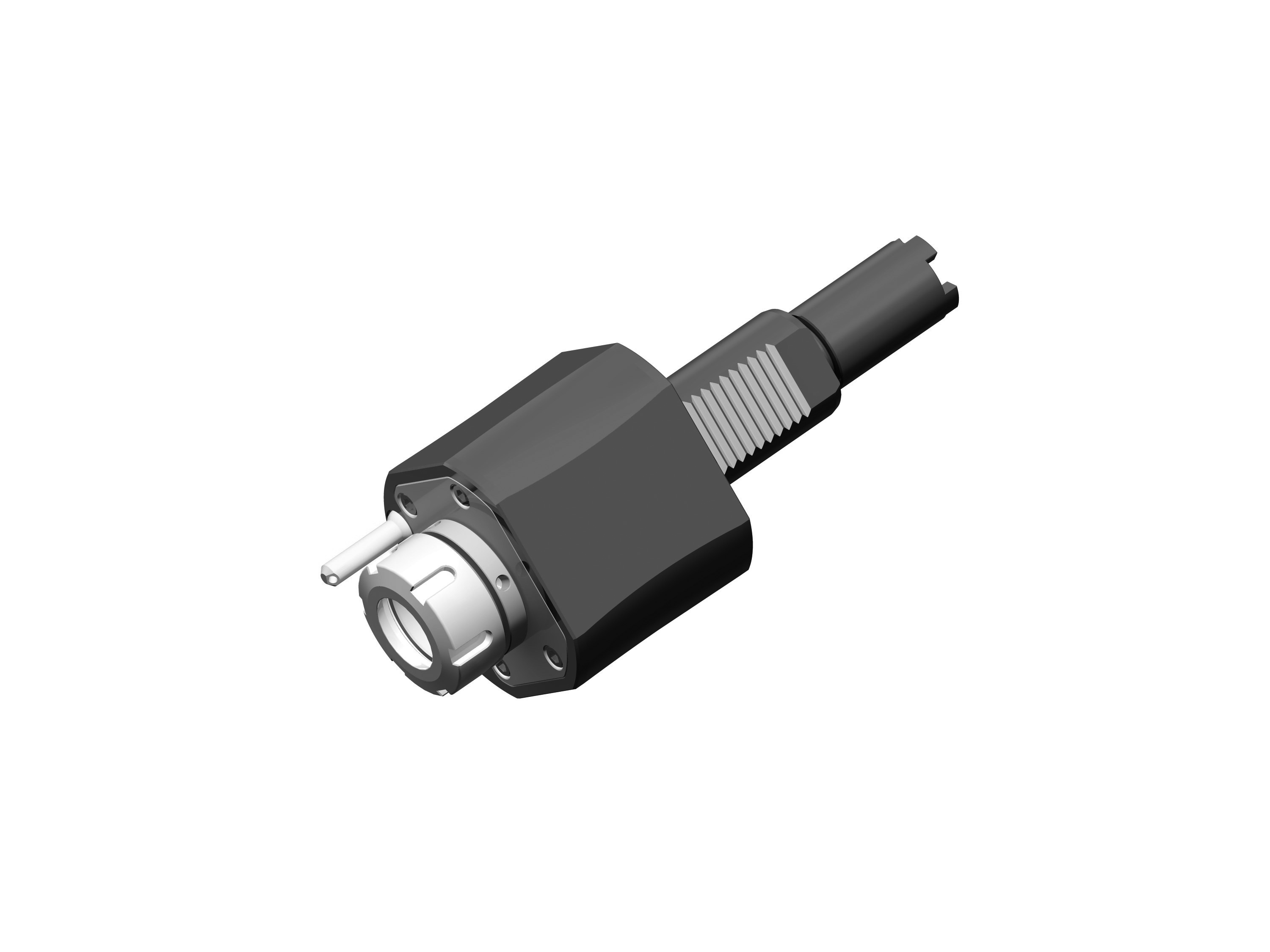

Driven tool HAAS VDI 40, with IC

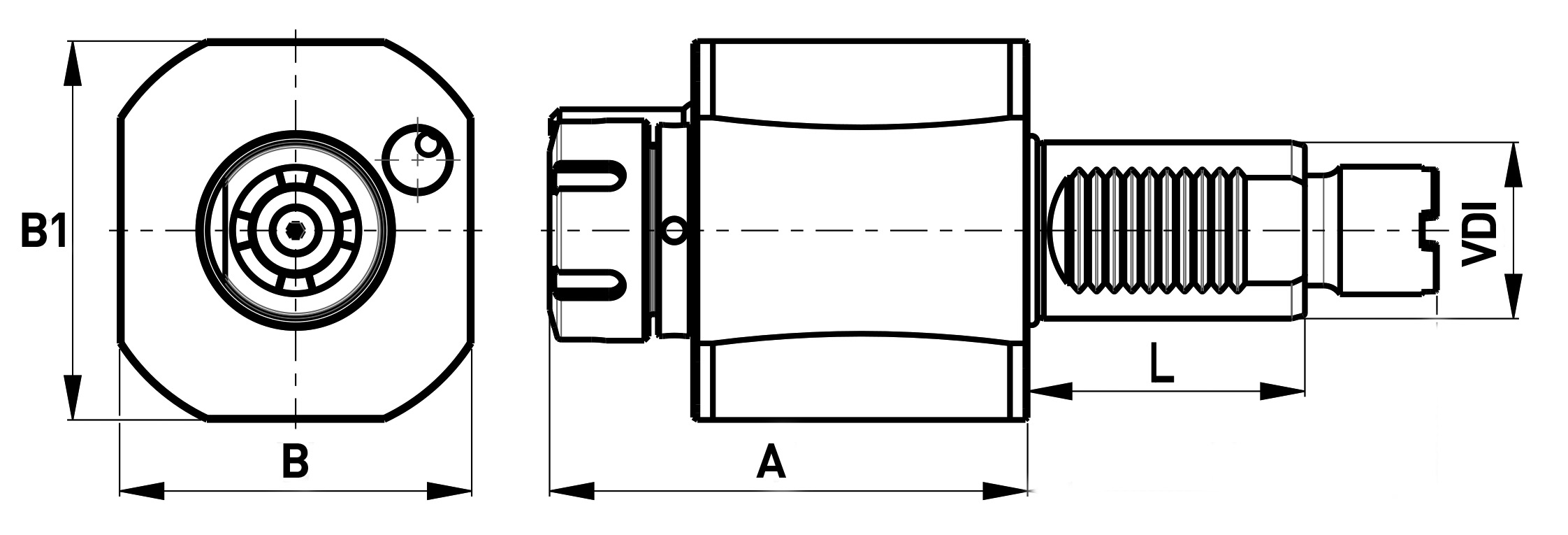

Drawing Driven tool HAAS VDI 40, with IC

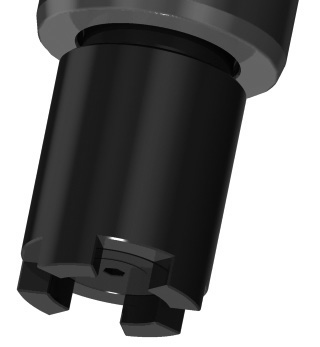

Driven tool for HAAS turrets VDI 40, with IC

€987.77 *
€1,175.45 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 47-ST-G-40-32IK
  • Customs tariff number: 8466 1031
  • European article number: 4049794682609
  • Weight: 4 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
Driven tool VDI 40 for HAAS turrets, straight, with IC - collet ER 32 - with internal... more
Close menu
Product information "Driven tool HAAS VDI 40, with IC"

Driven tool VDI 40 for HAAS turrets, straight, with IC

- collet ER 32
- with internal cooling
- coolant pressure up to 20 bar
- high-precision capsulated bearings
- suitable for high spindle speeds

For turret: Haas
Type: straight
VDI: 40
Collet: ER 32
Internal cooling: with
Related links to "Driven tool HAAS VDI 40, with IC"
Technical data
VDI SZ / Collet IK IC A mm L mm B mm B1 mm Übersetzung / Ratio Max.... more
Zurück
VDI SZ /
Collet		 IK
IC		 A
mm		 L
mm		 B
mm		 B1
mm		 Übersetzung /
Ratio		 Max. Drehmoment /
Max. torque Nm		 Drehzahl /
Speed min-1
40 ER 32 - 109 64 80 86  1 : 1 50 6000
40 ER 32  ✓ 109 64 80 86  1 : 1 50 6000

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
