Driven tool OKUMA VDI 40 ER 32, without IC

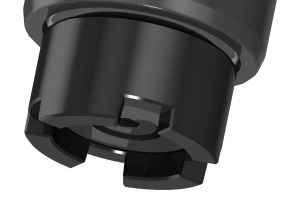

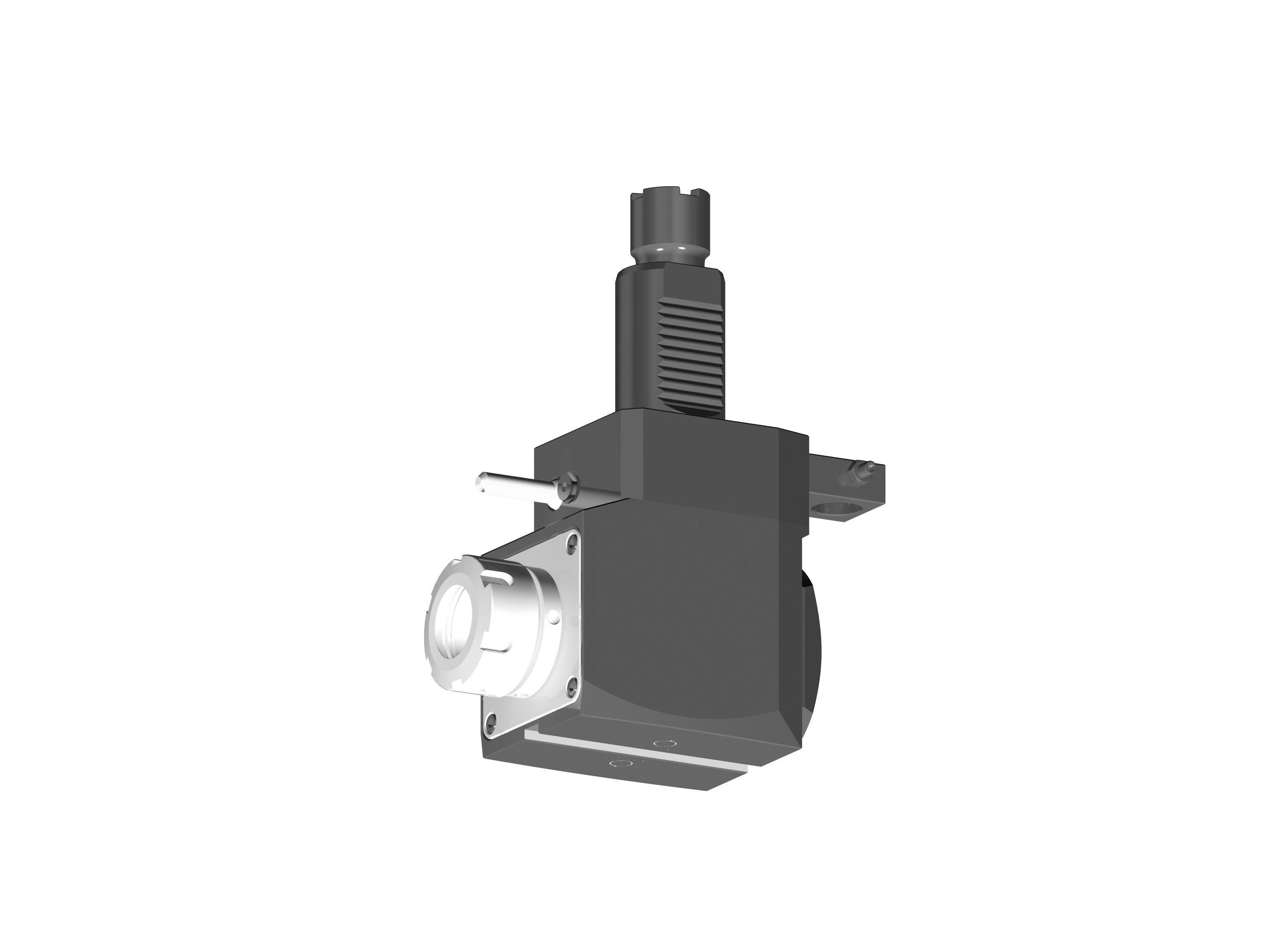

Preview: Driven tool OKUMA VDI 40 ER 32, without IC Preview: DRawing Driven tool OKUMA VDI 40 ER 32, without IC Preview: Driven tool for OKUMA turrets VDI 40 ER 32, without IC
Driven tool OKUMA VDI 40 ER 32, without IC
DRawing Driven tool OKUMA VDI 40 ER 32, without IC
Driven tool for OKUMA turrets VDI 40 ER 32, without IC

€1,632.96 *
€1,943.22 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 47-SO-WL-40-32GR
  • Customs tariff number: 8466 1031
  • European article number: 4049794682579
  • Weight: 6 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
Driven tool angular 90°, offset for OKUMA turrets, VDI 40, without IC - collet ER 32 -... more
Close menu
Product information "Driven tool OKUMA VDI 40 ER 32, without IC"

Driven tool angular 90°, offset for OKUMA turrets, VDI 40, without IC

- collet ER 32
- without internal cooling
- for left-hand rotation
- coolant pressure up to 20 bar
- high-precision capsulated bearings
- suitable for high spindle speeds

For turret: Okuma
Type: angular 90°, offset
VDI: 40
Collet: ER 32
Internal cooling: without
Related links to "Driven tool OKUMA VDI 40 ER 32, without IC"
Technical data
VDI SZ / Collet IK IC Richtung / Direction C mm... more
Zurück
VDI SZ /
Collet		 IK
IC		 Richtung /
Direction		 C
mm		 A1
mm		 A
mm		 L
mm		 F
mm		 E
mm		 B
mm		 Übersetzung /
Ratio		 Max. Drehmoment /
Max. torque Nm		 Drehzahl /
Speed min-1
40 ER 32  - links/left 80 91 56 63 82 36 75  1 : 1 50 6000
40 ER 32  ✓ links/left 80 91 56 63 82 36 75  1 : 1 50 6000

Angetriebene Werkzeuge mit VDI 30 auf Anfrage lieferbar /
Driven tools with VDI 30 available on request

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
