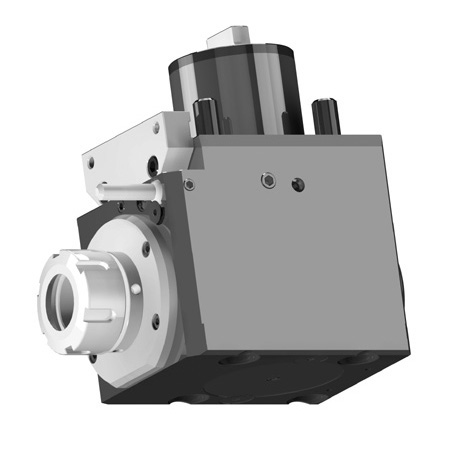

Driven tool Ø 60 mm angular, with IC

Preview: Driven tool Ø 60 mm angular, with IC Preview: Drawing Driven tool Ø 60 mm angular, with IC Preview: Driven tool OKUMA LB2000 Ø 60 mm angular, with IC
Driven tool Ø 60 mm angular, with IC

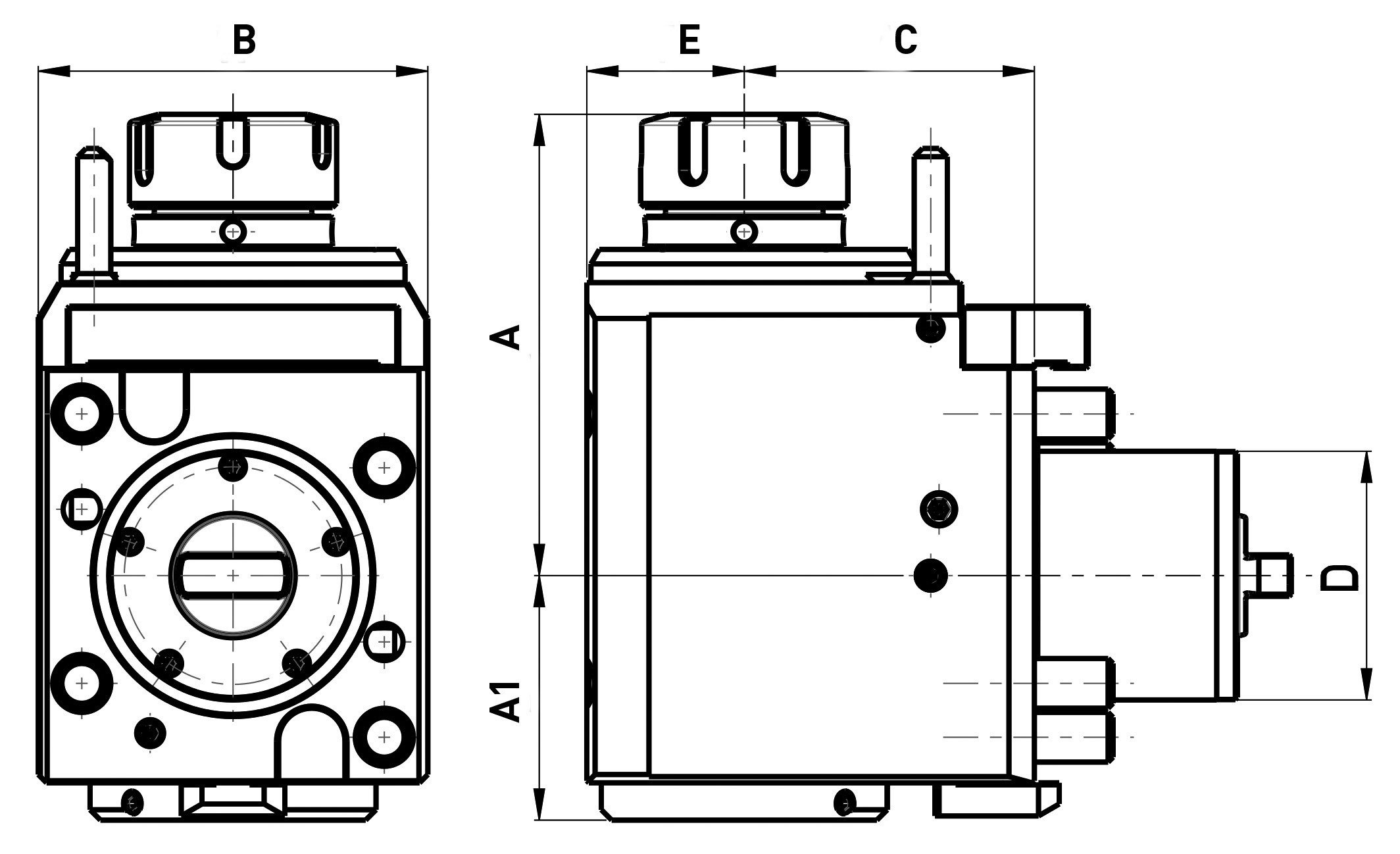

Drawing Driven tool Ø 60 mm angular, with IC
Driven tool OKUMA LB2000 Ø 60 mm angular, with IC

€2,323.87 *
€2,765.41 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 47-BFK60-RIK
  • Customs tariff number: 8466 1031
  • European article number: 4049794079638
  • Weight: 7,1 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
Driven tool Ø 65 mm for OKUMA LB2000 / LB3000 turrets, angular 90°, with IC - mounted by... more
Close menu
Product information "Driven tool Ø 60 mm angular, with IC"

Driven tool Ø 65 mm for OKUMA LB2000 / LB3000 turrets, angular 90°, with IC

- mounted by bolts
- collet ER 32
- right-hand rotation
- with internal cooling
- coolant pressure up to 20 bar
- high-precision capsulated bearings
- suitable for high spindle speeds

For turret: Okuma LB2000 / LB3000
Type: angular 90°
Collet: ER 32
Internal cooling: with
Ø : 60 mm
Related links to "Driven tool Ø 60 mm angular, with IC"
Technical data
D mm SZ / Collet IK / IC Richtung / Direction A mm A1 mm C mm B mm E mm... more
Zurück
D
mm		 SZ /
Collet		 IK /
IC		 Richtung /
Direction		 A
mm		 A1
mm		 C
mm		 B
mm		 E
mm		 Übersetzung /
Ratio		 Max. Drehmoment /
Max. torque Nm		 Drehzahl /
Speed min-1
60 ER 32 - rechts/right 111 65 90 108 38  1 : 1 50 6000
60 ER 32  ✓ rechts/right 111 65 90 108 38  1 : 1 50 6000

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
