Driven tool TOEM, VDI 30 ER 25 with IC

Preview: Driven tool TOEM, VDI 30 ER 25 with IC Preview: Drawing Driven tool TOEM, VDI 30 ER 25 with IC Preview: Detail Driven tool TOEM, VDI 30 ER 25 with IC

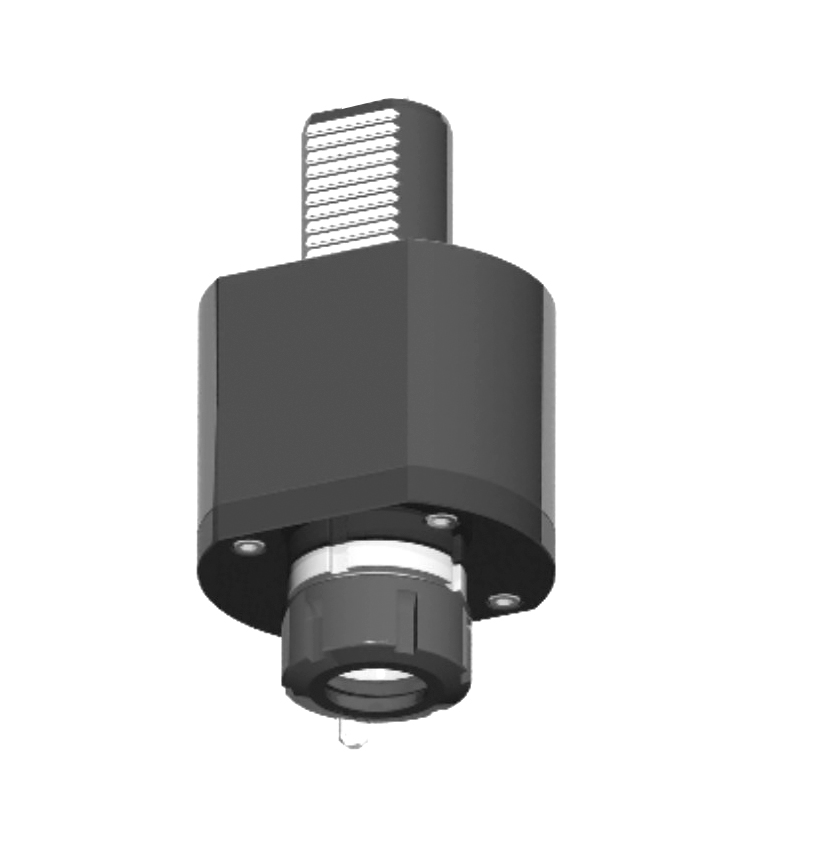

Driven tool TOEM, VDI 30 ER 25 with IC

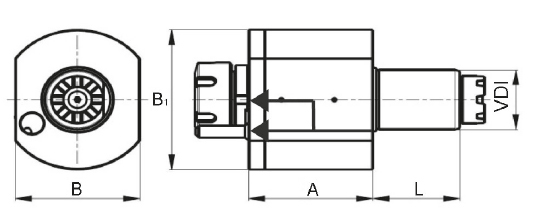

Drawing Driven tool TOEM, VDI 30 ER 25 with IC

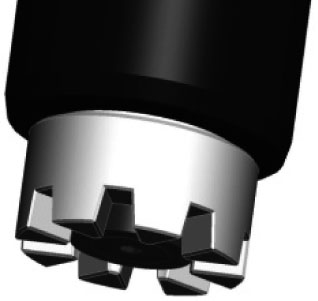

Detail Driven tool TOEM, VDI 30 ER 25 with IC

€911.88 *
€1,085.14 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 47-TO-G-30-25IK
  • Customs tariff number: 8466 1031
  • European article number: 4049794058145
  • Weight: 1,85 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
Driven tool, TOEM, straight - for BARRUFALDI turrets - coolant pressure up to 20 bar -... more
Close menu
Product information "Driven tool TOEM, VDI 30 ER 25 with IC"

Driven tool, TOEM, straight

- for BARRUFALDI turrets
- coolant pressure up to 20 bar
- high-precision capsulated bearings
- suitable for high spindle speeds

- VDI 30
- ER 25
- with internal cooling

For turret: Barrufaldi TOEM
Type: straight
VDI: 30
Collet: ER 25
Internal cooling: with
Related links to "Driven tool TOEM, VDI 30 ER 25 with IC"
Technical data
VDI SZ / Collet IK  / IC A mm L mm B mm B1 mm Übersetzung / Ratio... more
Zurück
VDI SZ /
Collet		 IK  /
IC		 A
mm		 L
mm		 B
mm		 B1
mm		 Übersetzung /
Ratio		 Max. Drehmoment /
Max. torque Nm		 Drehzahl /
Speed min-1
30 ER 25   - 87 45 62 69  1 : 1 28 6000
30 ER 25    ✓ 87 45 62 69  1 : 1 28 6000
40 ER 25  - 105 53 76 94  1 : 1 50 6000
40 ER 25    ✓ 105 53 76 94  1 : 1 50 6000
40 ER 32  - 108 53 76 94  1 : 1 50 6000
40 ER 32    ✓ 108 53 76 94  1 : 1 50 6000

Angetriebene Werkzeuge mit VDI 50 auf Anfrage lieferbar /
Driven tools with VDI 50 available on request

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
