Floating chuck VDI 40 for collets ER 40

Preview: Floating chuck VDI 40 for collets ER 40 Preview: Drawing 1 Floating chuck VDI 40 for collets ER 40 Preview: Drawing 2 Floating chuck VDI 40 for collets ER 40
Floating chuck VDI 40 for collets ER 40

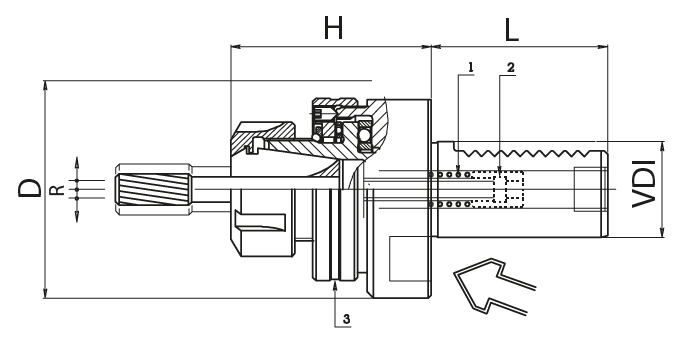

Drawing 1 Floating chuck VDI 40 for collets ER 40

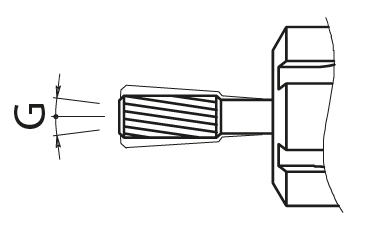

Drawing 2 Floating chuck VDI 40 for collets ER 40

€426.96 *
€508.08 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 47-PH-40-40
  • Customs tariff number: 8466 1031
  • European article number: 4049794061053
  • Weight: 2,25 kg
  • In stock: 1
Description Technical data Evaluations 0
Description
Floating chuck with VDI shank, with internal cooling - VDI 40 - collet ER 40 - radial... more
Close menu
Product information "Floating chuck VDI 40 for collets ER 40"

Floating chuck with VDI shank, with internal cooling

- VDI 40
- collet ER 40

- radial clearance adjustable
- application: free and parallel floating
- spring force, centering force and
  floating adjustable

Type: Floating chucks
VDI: 40
for collets: ER40
Related links to "Floating chuck VDI 40 for collets ER 40"
Technical data
VDI Spannzange / Collet D mm H mm L mm R max mm G max mm 30 ER 25 68... more
Zurück
VDI Spannzange /
Collet		 D
mm		 H
mm		 L
mm		 R max
mm		 G max
mm
30 ER 25 68 64 55 1 1,5
30 ER 32 68 72 55 1,5 1,5
40 ER 32 83 74 63 1,5 1,5
40 ER 40 83 74 63 1,5 1,5

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
