Floating chuck ER 16 / D 16 mm

Preview: Floating chuck ER 16 / D 16 mm Preview: Drawing Floating chuck ER 16 / D 16 mm
Floating chuck ER 16 / D 16 mm

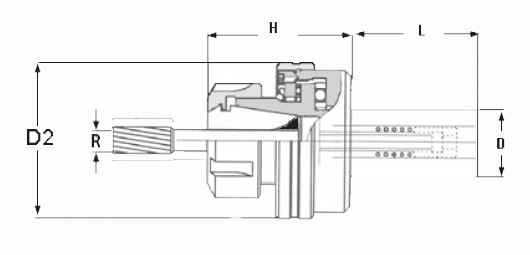

Drawing Floating chuck ER 16 / D 16 mm

€383.47 *
€456.33 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 09-PHZ-16-16
  • Customs tariff number: 8466 1038
  • European article number: 4049794020425
  • Weight: 0,3 kg
  • In stock: 2
Description Technical data Evaluations 0
Description
Floating chuck with cylindrical shank - with adjustable radial floating movement -... more
Close menu
Product information "Floating chuck ER 16 / D 16 mm"

Floating chuck with cylindrical shank

- with adjustable radial floating movement
- application: free and parallel floating
- spring force, centering force and
  floating movement adjustable

ER 16
D: 16 mm

Type: Floating chucks
Tool holders: Cylindrical shank
for collets: ER16
Related links to "Floating chuck ER 16 / D 16 mm"
Technical data
Spannzange / Collet D mm H mm D2 mm L mm R mm ER 11 16 40 42 46... more
Zurück
Spannzange /
Collet		 D
mm		 H
mm		 D2
mm		 L
mm		 R
mm
ER 11 16 40 42 46 1
ER 11 20 40 42 46 1
ER 16 16 44 42 46 1
ER 16 25 44 42 46 1
ER 20 16 50 50 46 1
ER 20 20 50 50 46 1
ER 20 25 50 50 46 1
ER 25 20 53 57 46 1
ER 25 25 53 57 46 1
ER 32 25 58 69 50 1,5
ER 32 32 58 69 50 1,5
ER 40 25 64 79 50 1,5
ER 40 32 64 79 50 1,5

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
