End mill adapter, HSK-A 63, Ø 6 mm / A 65 mm

Preview: End mill adapter, HSK-A 63, Ø 6 mm / A 65 mm Preview: Drawing End mill adapter, HSK-A 63, Ø 6 mm / A 65 mm
End mill adapter, HSK-A 63, Ø 6 mm / A 65 mm

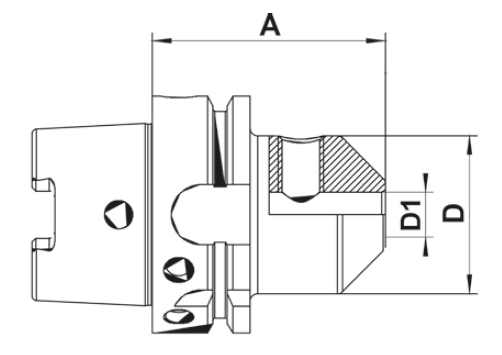

Drawing End mill adapter, HSK-A 63, Ø 6 mm / A 65 mm

€64.94 *
€77.28 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 17-WE63A-6-65
  • Customs tariff number: 8466 1038
  • European article number: 4049794033913
  • Weight: 0,9 kg
  • In stock: 8
Description Technical data Evaluations 0
Description
End mill adapter WELDON, DIN 69893 HSK-A - HSK 63A - balanced G = 6,3 15.000 U/min. - D1:... more
Close menu
Product information "End mill adapter, HSK-A 63, Ø 6 mm / A 65 mm"

End mill adapter WELDON, DIN 69893 HSK-A

- HSK 63A
- balanced G = 6,3 15.000 U/min.
- D1: 6 mm
- A: 65 mm

Type: End mill adaptors Weldon
Size: HSK-A 63
Ø : 6 mm
Related links to "End mill adapter, HSK-A 63, Ø 6 mm / A 65 mm"
Technical data
Größe / Size D1 mm D mm A mm HSK-A 63 6 25 65... more
Zurück
Größe /
Size		 D1
mm		 D
mm		 A
mm
HSK-A 63 6 25 65
HSK-A 63 6 25 100
HSK-A 63 8 28 65
HSK-A 63 8 28 100
HSK-A 63 10 35 65
HSK-A 63 10 35 100
HSK-A 63 12 42 80
HSK-A 63 12 42 100
HSK-A 63 16 48 80
HSK-A 63 16 48 100
HSK-A 63 18 50 80
HSK-A 63 20 52 80
HSK-A 63 20 52 100
HSK-A 63 25 65 110
HSK-A 63 32 72 110
HSK-A 63 40 80 125

Gewuchtet G 6,3 15.000 U/min. /
Balanced G 6,3 5.000 U/min.

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
