Shell mill holder, HSK-A 63, Ø 32 mm / A 60 mm

Preview: Shell mill holder, HSK-A 63, Ø 32 mm / A 60 mm Preview: Drawing Shell mill holder, HSK-A 63, Ø 32 mm / A 60 mm
Shell mill holder, HSK-A 63, Ø 32 mm / A 60 mm

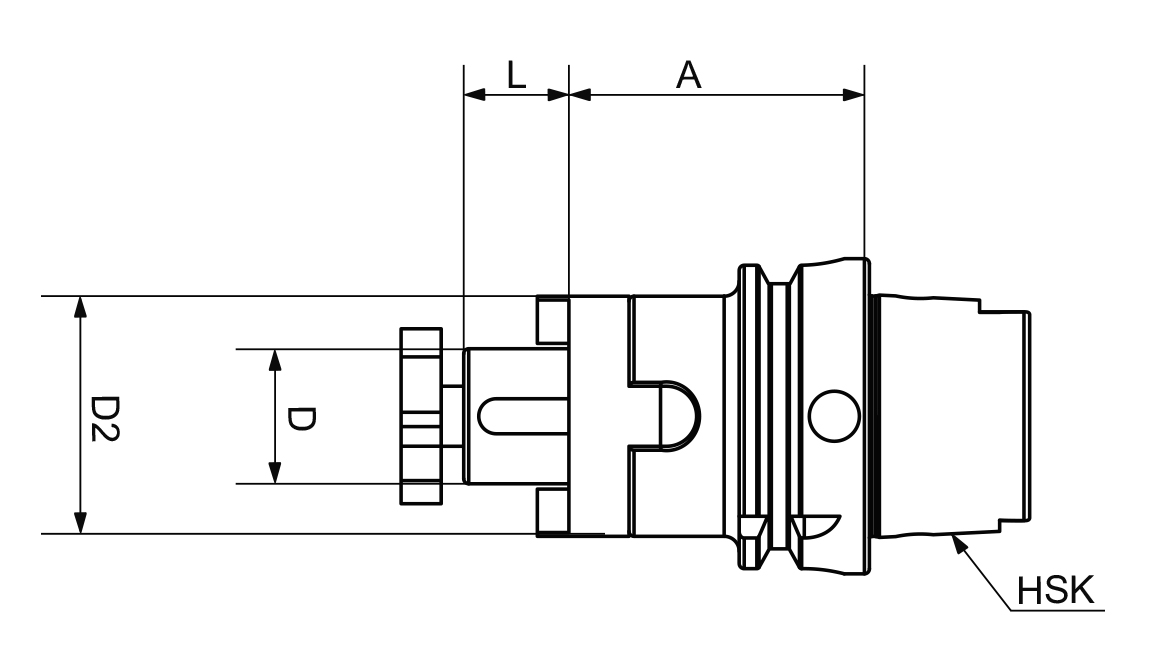

Drawing Shell mill holder, HSK-A 63, Ø 32 mm / A 60 mm

€92.81 *
€110.44 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 17-MS63A-32-60
  • Customs tariff number: 8466 1038
  • European article number: 4049794034415
  • Weight: 1,95 kg
  • In stock: 5
Description Technical data Evaluations 0
Description
Shell mill holder, DIN 6357 HSK-A - with enlarged collar diameter - HSK 63A - balanced G... more
Close menu
Product information "Shell mill holder, HSK-A 63, Ø 32 mm / A 60 mm"

Shell mill holder, DIN 6357 HSK-A

- with enlarged collar diameter
- HSK 63A
- balanced G = 6,3 15.000 U/min.
- D: 32 mm
- A: 60 mm

Type: Face mill holders
Size: HSK-A 63
Ø : 32 mm
Related links to "Shell mill holder, HSK-A 63, Ø 32 mm / A 60 mm"
Technical data
Größe / Size D mm D2 mm L mm A mm HSK-A 63 16 38 17 50 HSK-A... more
Zurück
Größe /
Size		 D
mm		 D2
mm		 L
mm		 A
mm
HSK-A 63 16 38 17 50
HSK-A 63 16 38 17 100
HSK-A 63 22 48 19 50
HSK-A 63 22 48 19 100
HSK-A 63 27 58 21 55
HSK-A 63 27 58 21 100
HSK-A 63 32 78 24 60
HSK-A 63 32 78 24 100
HSK-A 63 40 88 27 60
HSK-A 63 40 88 27 100


Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
