Shrink chuck HSK-A 63, Ø 3 mm / A 80 mm

€137.66 *
€163.82 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • 17-SHF63A-3-80
  • 8466 1038
  • 4049794668801
  • 0,95 kg
  • 1
Shrink chuck HSK - form A - DIN 69893 - balanced G = 6,3 15.000 U/min. - HSK-A 63 - D2: 3... more
Product information "Shrink chuck HSK-A 63, Ø 3 mm / A 80 mm"

Shrink chuck HSK - form A

- DIN 69893
- balanced G = 6,3 15.000 U/min.
- HSK-A 63
- D2: 3 mm
- A: 80 mm

Type: Shrink chucks
Size: HSK-A 63
Ø : 3 mm
Related links to "Shrink chuck HSK-A 63, Ø 3 mm / A 80 mm"

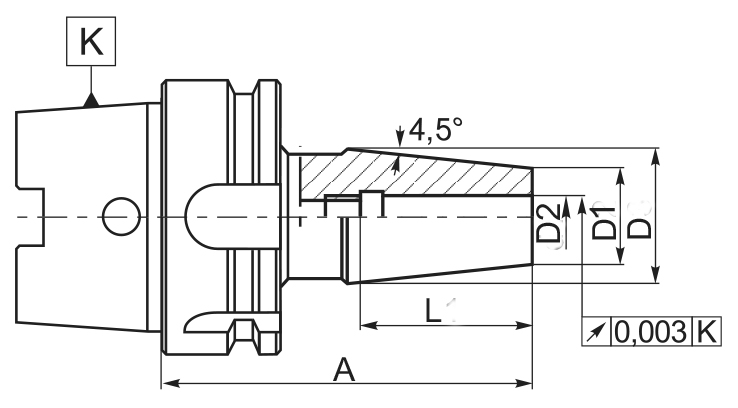

Größe / Size D2 mm D1 mm D mm L mm A mm HSK-A 63... more
Größe /
Size
D2
mm
D1
mm
D
mm
L
mm
A
mm
HSK-A 63 3 10 18 36 80
HSK-A 63 3 10 18 36 120
HSK-A 63 4 10 18 36 80
HSK-A 63 4 10 18 36 120
HSK-A 63 5 16 22 36 80
HSK-A 63 5 16 22 36 120
HSK-A 63 6 21 27 36 80
HSK-A 63 6 21 27 36 120
HSK-A 63 8 21 27 36 80
HSK-A 63 8 21 27 36 120
HSK-A 63 10 24 32 42 85
HSK-A 63 10 24 32 42 120
HSK-A 63 12 24 32 47 90
HSK-A 63 12 24 32 47 120
HSK-A 63 14 27 34 47 90
HSK-A 63 16 27 34 50 95
HSK-A 63 16 27 34 50 120
HSK-A 63 18 33 42 50 95
HSK-A 63 20 33 42 52 100
HSK-A 63 20 33 42 52 120

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
