Shrink chuck HSK-A 63, Ø 5 mm / A 80 mm

Preview: Shrink chuck HSK-A 63, Ø 5 mm / A 80 mm Preview: Drawing Shrink chuck HSK-A 63, Ø 5 mm / A 80 mm
Shrink chuck HSK-A 63, Ø 5 mm / A 80 mm

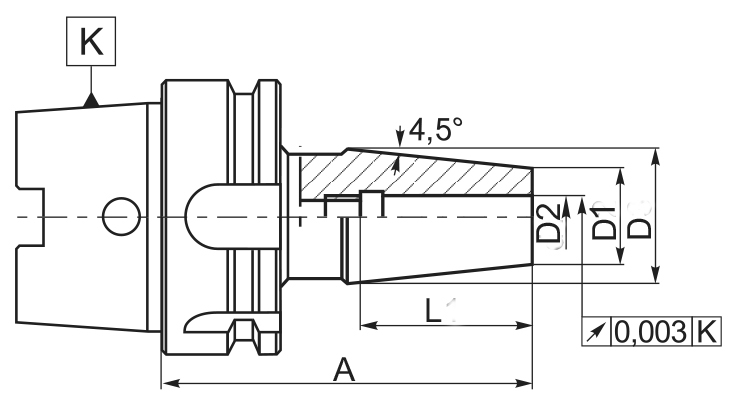

Drawing Shrink chuck HSK-A 63, Ø 5 mm / A 80 mm

€134.50 *
€160.06 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 17-SHF63A-5-80
  • Customs tariff number: 8466 1038
  • European article number: 4049794668863
  • Weight: 1,05 kg
  • In stock: 1
Description Technical data Evaluations 0
Description
Shrink chuck HSK - form A - DIN 69893 - balanced G = 6,3 15.000 U/min. - HSK-A 63 -... more
Close menu
Product information "Shrink chuck HSK-A 63, Ø 5 mm / A 80 mm"

Shrink chuck HSK - form A

- DIN 69893
- balanced G = 6,3 15.000 U/min.
- HSK-A 63
- D2: 5 mm
- A: 80 mm

Type: Shrink chucks
Size: HSK-A 63
Ø : 5 mm
Related links to "Shrink chuck HSK-A 63, Ø 5 mm / A 80 mm"
Technical data
Größe / Size D2 mm D1 mm D mm L mm A mm HSK-A 63... more
Zurück
Größe /
Size		 D2
mm		 D1
mm		 D
mm		 L
mm		 A
mm
HSK-A 63 3 10 18 36 80
HSK-A 63 3 10 18 36 120
HSK-A 63 4 10 18 36 80
HSK-A 63 4 10 18 36 120
HSK-A 63 5 16 22 36 80
HSK-A 63 5 16 22 36 120
HSK-A 63 6 21 27 36 80
HSK-A 63 6 21 27 36 120
HSK-A 63 8 21 27 36 80
HSK-A 63 8 21 27 36 120
HSK-A 63 10 24 32 42 85
HSK-A 63 10 24 32 42 120
HSK-A 63 12 24 32 47 90
HSK-A 63 12 24 32 47 120
HSK-A 63 14 27 34 47 90
HSK-A 63 16 27 34 50 95
HSK-A 63 16 27 34 50 120
HSK-A 63 18 33 42 50 95
HSK-A 63 20 33 42 52 100
HSK-A 63 20 33 42 52 120

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
