Solid jaws for independent chucks 100 mm

Preview: Solid jaws for independent chucks 100 mm Preview: Drawing Solid jaws for independent chucks 100 mm
Solid jaws for independent chucks 100 mm

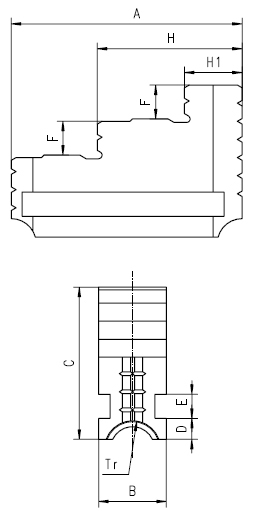

Drawing Solid jaws for independent chucks 100 mm

€317.25 *
€377.53 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 398574010100
  • Customs tariff number: 84662091
  • European article number:
  • Weight: 0,4 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
Hard solid jaws, reversible clamping for Bison independent chucks Ø 100 mm - material:... more
Close menu
Product information "Solid jaws for independent chucks 100 mm"

Hard solid jaws, reversible clamping for Bison
independent chucks Ø 100 mm

- material: steel
- 4 pieces/set

Make: Bison
Jaws: Hard solid jaws, reversible
Jaws for Ø: 100 mm
Related links to "Solid jaws for independent chucks 100 mm"
Technical data
Futtergröße / Chuck size A B C D E F H1 H LH Gewinde... more
Zurück
Futtergröße /
Chuck size		 A B C D E F H1 H LH Gewinde /
LH Thread		 kg pro Stück /
kg per piece
85 34,0 13 30,0 4,5 5 7 8,0 17,5 Tr 16x2 0,1
100 34,0 13 30,0 4,5 5 7 8,0 17,5 Tr 16x2 0,1
125 / 160 51,0 16 34,5 6,0 5 8 12,5 31,5 Tr 18x4 0,1
200 81,0 32 63,0 8,7 10 14 17,5 48,5 Tr 28x5 0,7
250 96,5 32 63,0 8,7 10 14 23,0 59,0 Tr 28x5 1,3
315 111,0 40 76,5 9,7 12 18 27,0 67,0 Tr 32x6 1,5
400 129,0 40 76,5 9,7 12 18 32,5 78,5 Tr 32x6 1,8
500 152,5 52 93,5 11,7 15 22 35,0 93,0 Tr 36x6 3,4
630 177,0 52 93,5 11,7 15 25 45,0 109,0 Tr 40x6 4,0
800 202,0 70 114,5 15,7 20 25 44,0 122,0 Tr 44x8 7,8

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
