Solid jaws for independent chucks 315 mm
Product number:
398573140000
Customs tariff number
84662091
European Article Number
Weight
6 kg
Stock:
0
Related links:
Request Item
Product information "Solid jaws for independent chucks 315 mm"
Hard solid jaws, reversible clamping for Bison
independent chucks Ø 315 mm
- material: steel
- 4 pieces/set
| Jaws: | Hard solid jaws, reversible |
|---|---|
| Jaws for Ø: | 315 mm |
| Make: | Bison |

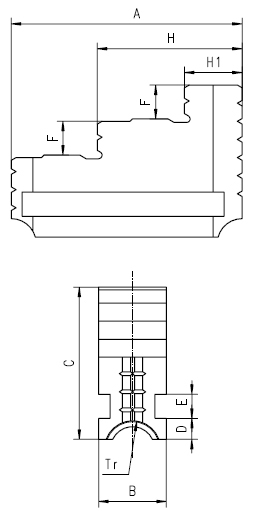

Technical Data
| Futtergröße / Chuck size |
A | B | C | D | E | F | H1 | H | LH Gewinde / LH Thread |
kg pro Stück / kg per piece |
| 85 | 34,0 | 13 | 30,0 | 4,5 | 5 | 7 | 8,0 | 17,5 | Tr 16x2 | 0,1 |
| 100 | 34,0 | 13 | 30,0 | 4,5 | 5 | 7 | 8,0 | 17,5 | Tr 16x2 | 0,1 |
| 125 / 160 | 51,0 | 16 | 34,5 | 6,0 | 5 | 8 | 12,5 | 31,5 | Tr 18x4 | 0,1 |
| 200 | 81,0 | 32 | 63,0 | 8,7 | 10 | 14 | 17,5 | 48,5 | Tr 28x5 | 0,7 |
| 250 | 96,5 | 32 | 63,0 | 8,7 | 10 | 14 | 23,0 | 59,0 | Tr 28x5 | 1,3 |
| 315 | 111,0 | 40 | 76,5 | 9,7 | 12 | 18 | 27,0 | 67,0 | Tr 32x6 | 1,5 |
| 400 | 129,0 | 40 | 76,5 | 9,7 | 12 | 18 | 32,5 | 78,5 | Tr 32x6 | 1,8 |
| 500 | 152,5 | 52 | 93,5 | 11,7 | 15 | 22 | 35,0 | 93,0 | Tr 36x6 | 3,4 |
| 630 | 177,0 | 52 | 93,5 | 11,7 | 15 | 25 | 45,0 | 109,0 | Tr 40x6 | 4,0 |
| 800 | 202,0 | 70 | 114,5 | 15,7 | 20 | 25 | 44,0 | 122,0 | Tr 44x8 | 7,8 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
